Wichard Thimble Shackle - Captive Pin - Diameter 10mm - 13/32" [1495W]

Wichard Thimble Shackle - Captive Pin - Diameter 10mm - 13/32" [1495W]

$139.14 USD
$163.69 USD $139.14 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

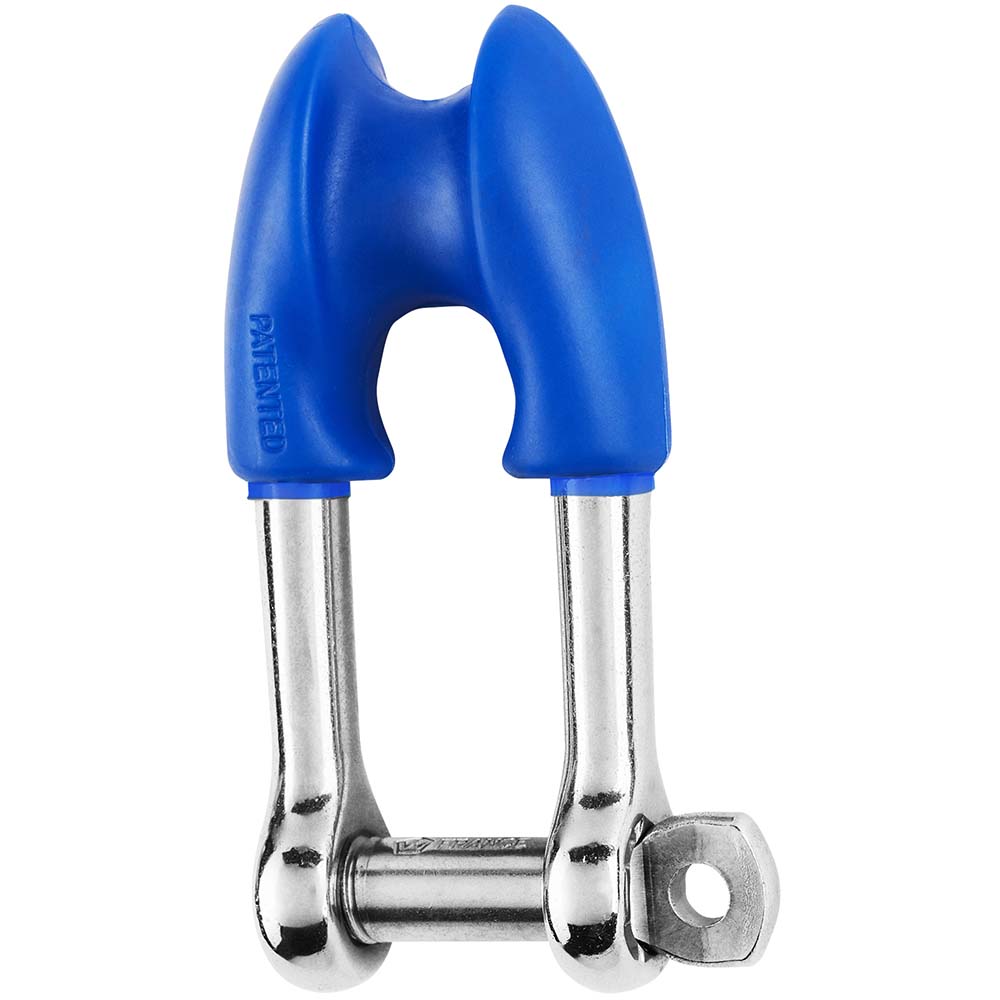

Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"

Features:

  • Thimble shackle with captive pin forged in grade 316L stainless steel
  • Allows to spliced a rope without adding an additional thimble
  • With the captive pin, no risk to lose the pin
  • Outstanding working and breaking loads

Applications:

  • Mainsheet halyards
  • Max rope size: 16 mm

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 3350
  • Breaking load (lb) 11020
  • Weight (lb) 0.322

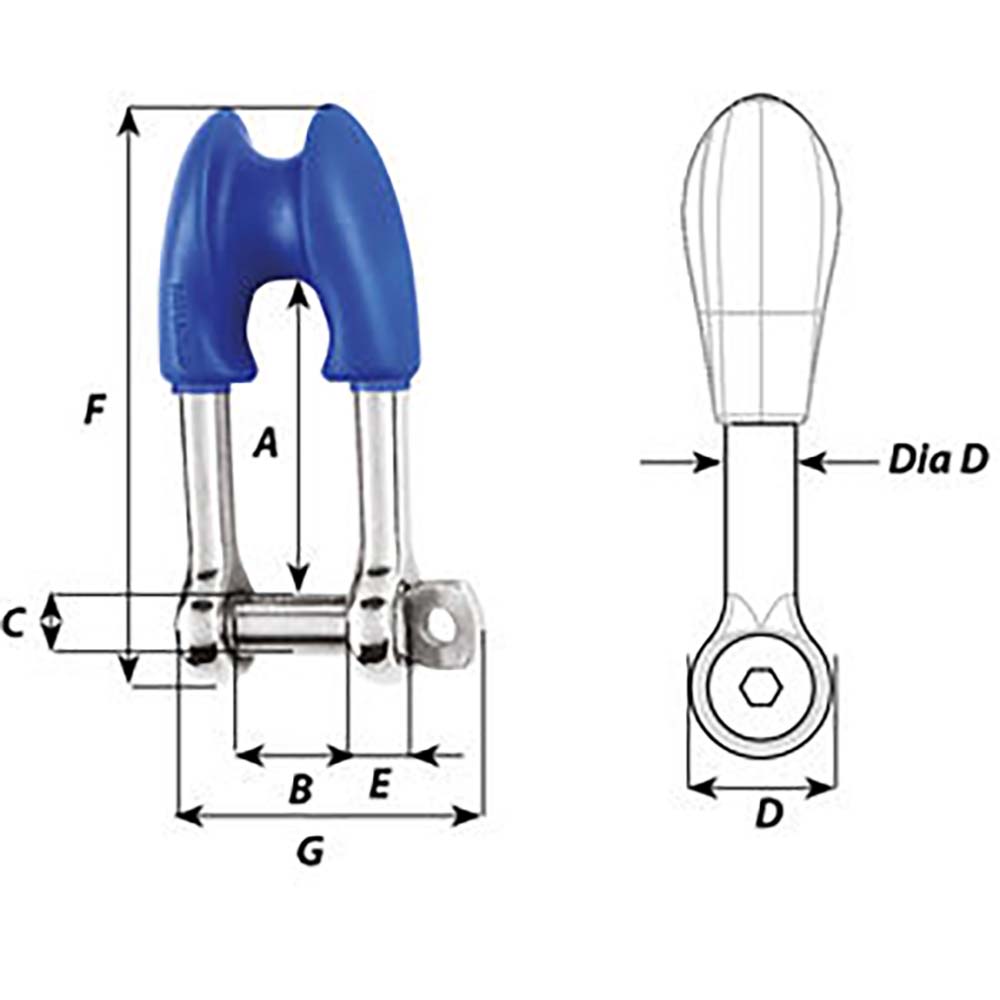

Dimensions (see 2nd image):

  • A (inch) 2-1/64"
  • B (inch) 25/32"
  • C (inch) 25/64"
  • D (inch) 25/32"
  • D diameter (inch) 25/64"
  • E (inch) 23/64"
  • F (inch) 3-47/64"
  • G (inch) 2-1/8"
