Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [1395W]

Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [1395W]

$157.84 USD
$185.69 USD $157.84 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

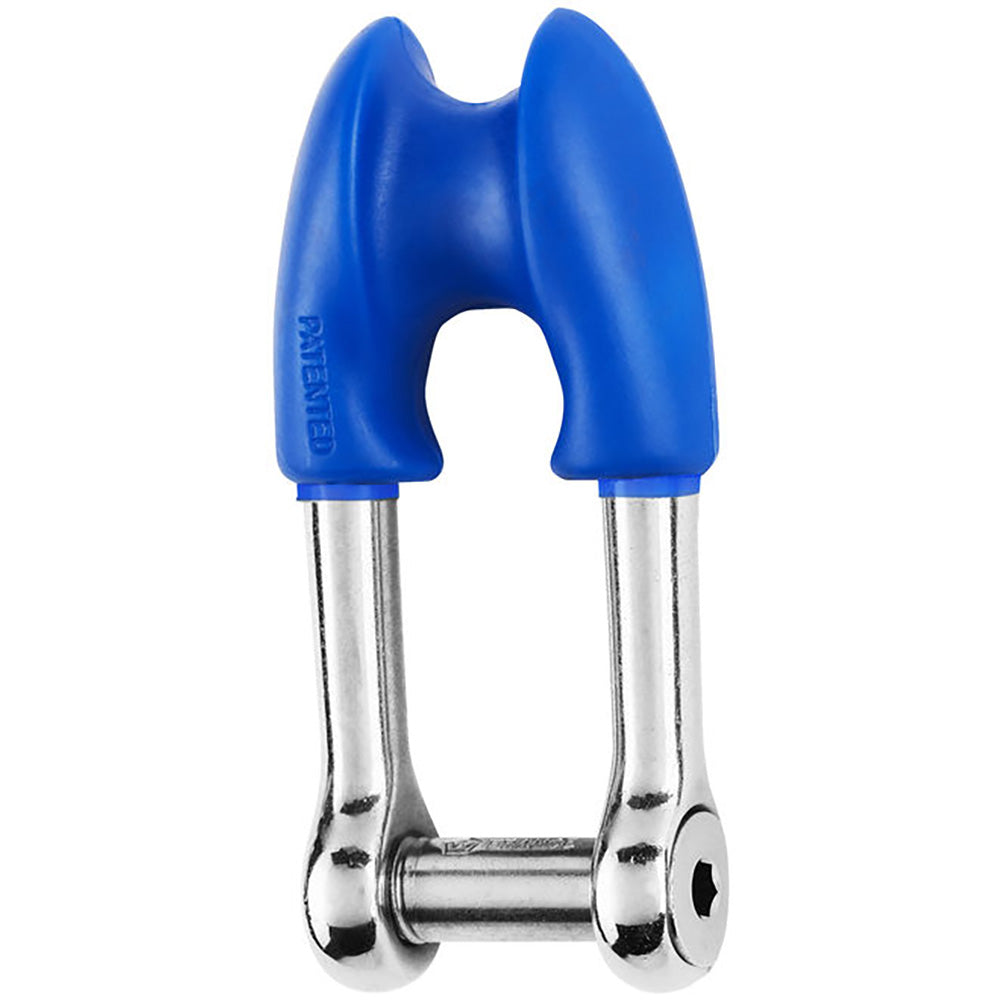

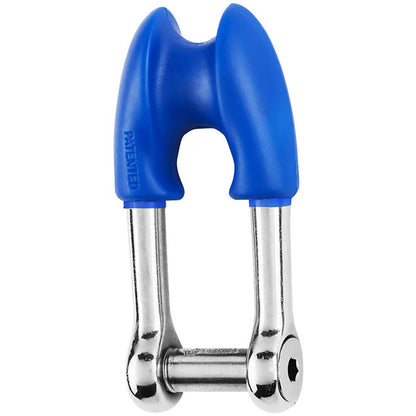

Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"

Features:

  • Thimble shackle with allen head pin forged in grade 316L stainless steel
  • Allows a rope to be spliced without adding and additional thimble
  • With the captive pin, no risk to lose the pin
  • Outstanding working and breaking loads

Applications:

  • Mainsheet halyards
  • Max rope size: 16 mm

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 3350 / (kg) 1520
  • Breaking load: (lb) 11020 / (kg) 5000
  • Weight: (lb) 0.313 / (g) 142

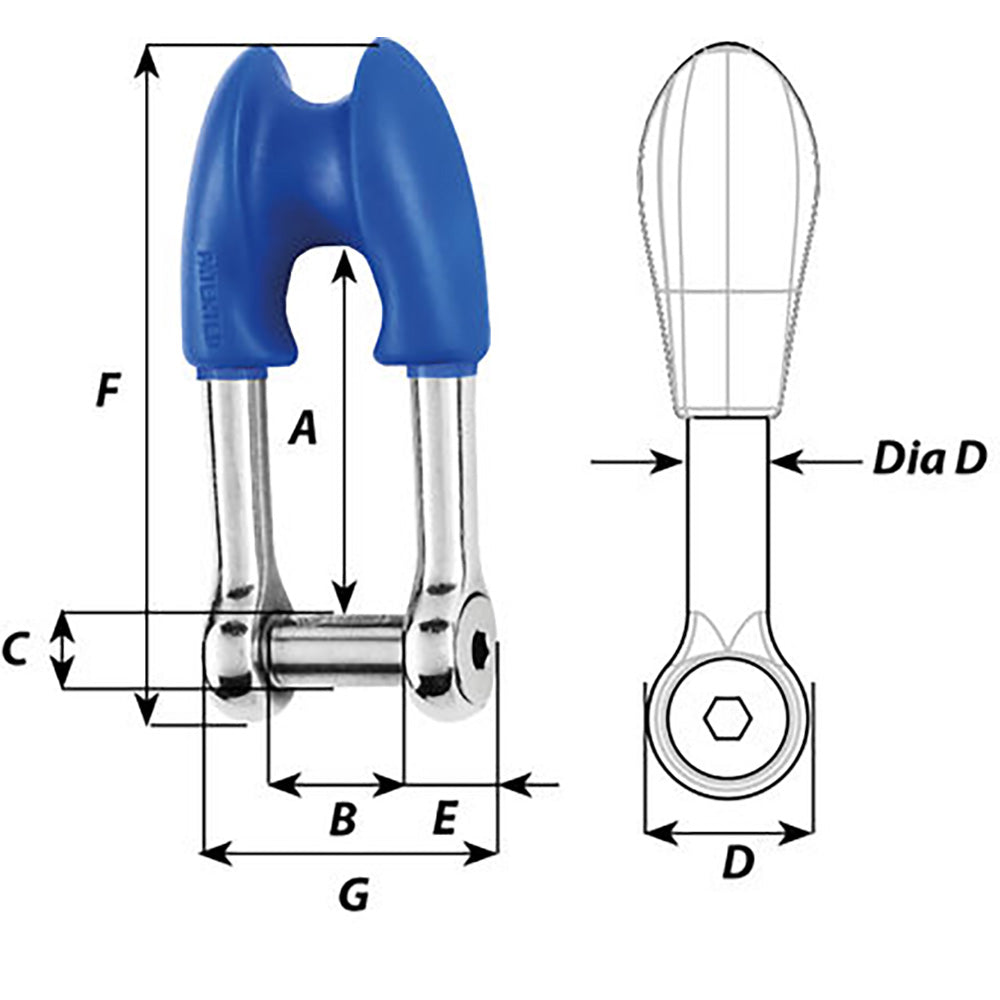

Dimensions:

  • A: (inch) 2 1/64" / (mm) 51
  • B: (inch) 25/32" / (mm) 20
  • C: (inch) 25/64" / (mm) 10
  • D: (inch) 25/32" / (mm) 20
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 5/16" / (mm) 8
  • F: (inch) 3 25/32" / (mm) 96
  • G: (inch) 1 39/64" / (mm) 41

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
