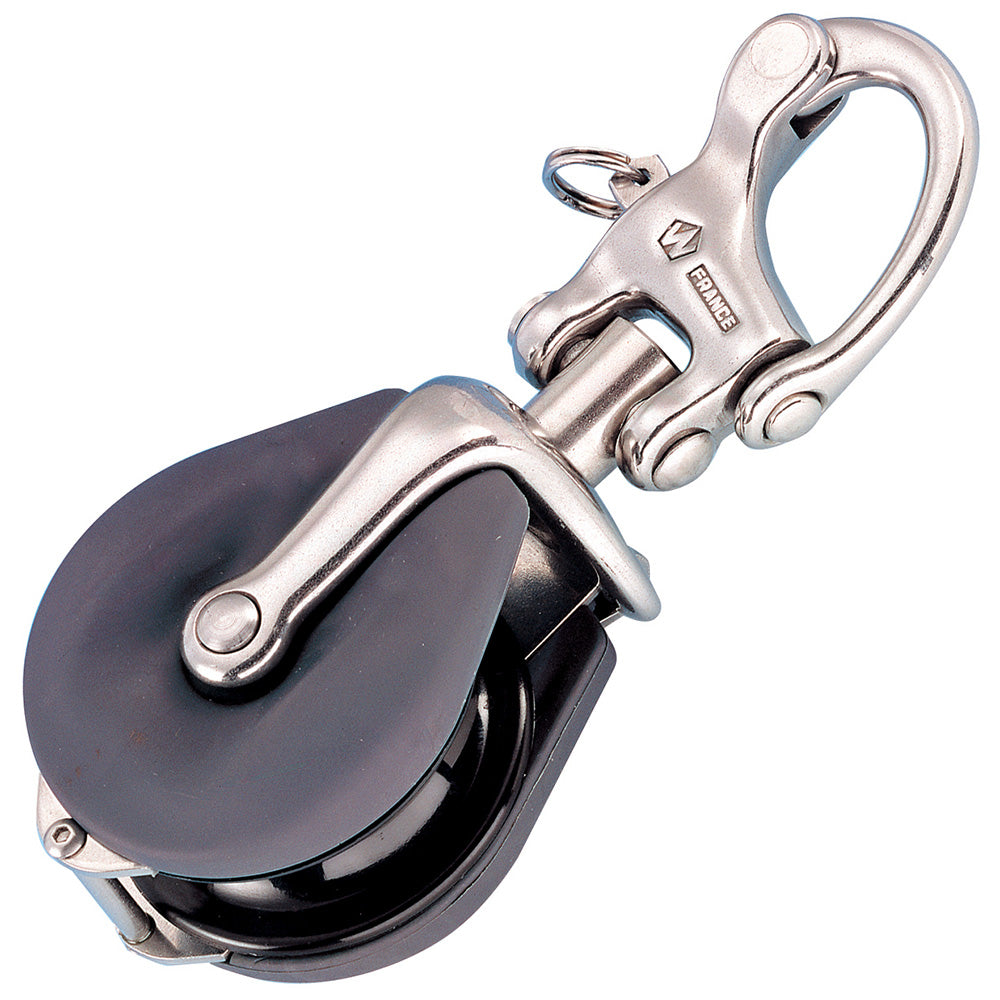

Wichard Snatch Block w/Snap Shackle - Max Rope Size 18mm (23/32") [35500W]
Wichard Snatch Block w/Snap Shackle - Max Rope Size 18mm (23/32") [35500W]
Regular price
$456.86 USD
Regular price
$537.48 USD
Sale price
$456.86 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA
Snatch Block with Snap Shackle - Max Rope Size 18mm (23/32")
Features:
- Free rotation thanks to snap shackle
- Very strong closing system
- Easy opening by simply pulling on the plunger pin
- Shock and scratch-resistant thanks to the elastomer molded cheeks
Applications:
- Changing sheets
- Spinnaker sheet deflector blocks
Materials:
- HR 17.4 PH forged stainless steel arm
- Elastomer molded cheeks
- Composite sheave
Specifications:
- Rope size: (inch) 23/32" / (mm) 18
- Length: (inch) 6 7/64" / (mm) 155
- Width: (inch) 2 21/64" / (mm) 59
- Thickness: (inch) 1 59/64" / (mm) 49
- Working Load: (lb) 2640 / (kg) 1200
- Breaking Load: (lb) 5510 / (kg) 2500
- Weight: (lb) 0.913 / (g) 414
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Quick Guide (pdf)
