Wichard HR Quick Release Snap Shackle With Swivel Eye -150mm Length- 5-29/32" [2678W]

Wichard HR Quick Release Snap Shackle With Swivel Eye -150mm Length- 5-29/32" [2678W]

$679.24 USD
$799.11 USD $679.24 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

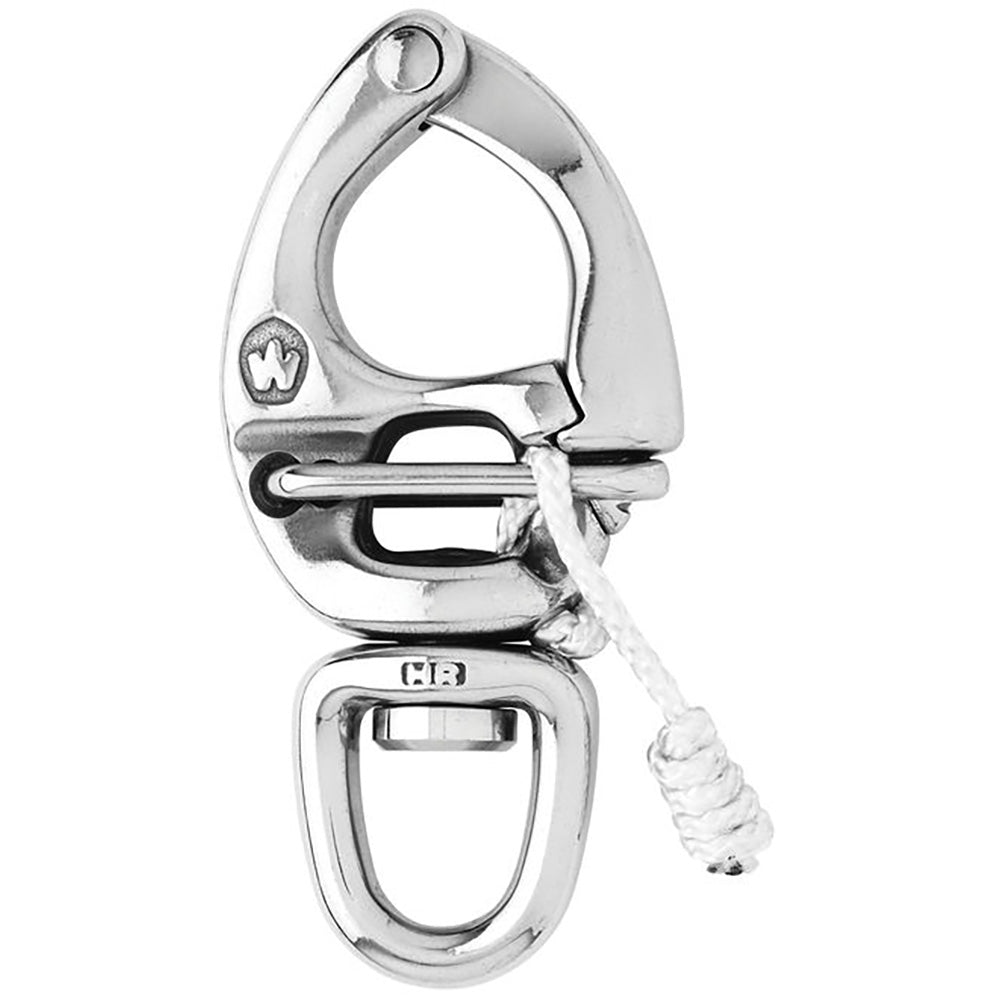

HR Quick Release Snap Shackle With Swivel Eye -150mm Length- 5-29/32"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with swivel eye
  • The opening is made by pulling the lanyard
  • Perfect to attach one sheet or halyard
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect for spinnaker sheets and halyards

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 11460 / (kg) 5200
  • Breaking load: (lb) 19840 / (kg) 9000
  • Weight: (lb) 1.208 / (g) 548

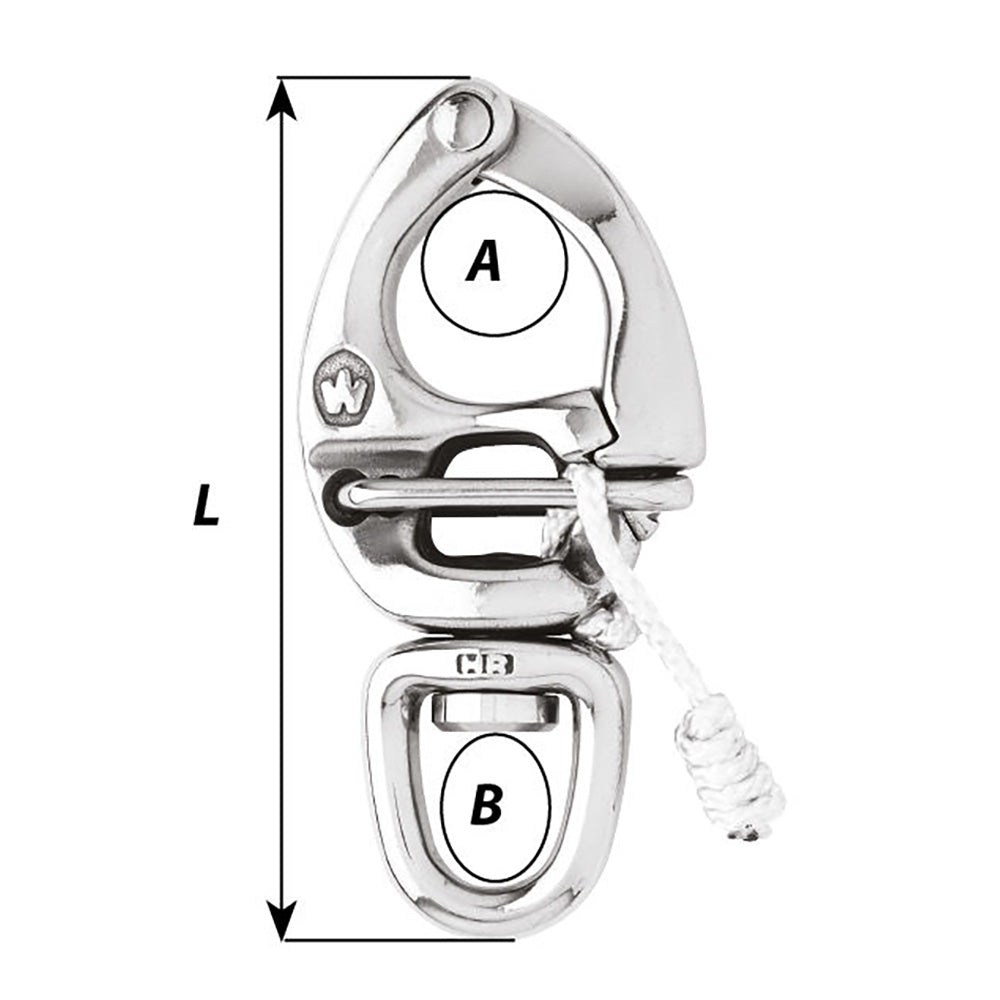

Dimensions:

  • A: (inch) 1 11/32" / (mm) 34
  • B: (inch) 15/16" / (mm) 24
  • Length: (inch) 5 29/32" / (mm) 150

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual
