Wichard HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64" [2778W]

Wichard HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64" [2778W]

$718.58 USD
$845.39 USD $718.58 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with large bail
  • The opening is made by pulling the lanyard
  • Perfect to attach several lines (spinnaker sheets...)
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect to attach several lines: spinnaker sheets...

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 11460 / (kg) 5200
  • Breaking load: (lb) 17630 / (kg) 8000
  • Weight: (lb)1.362 / (g) 618

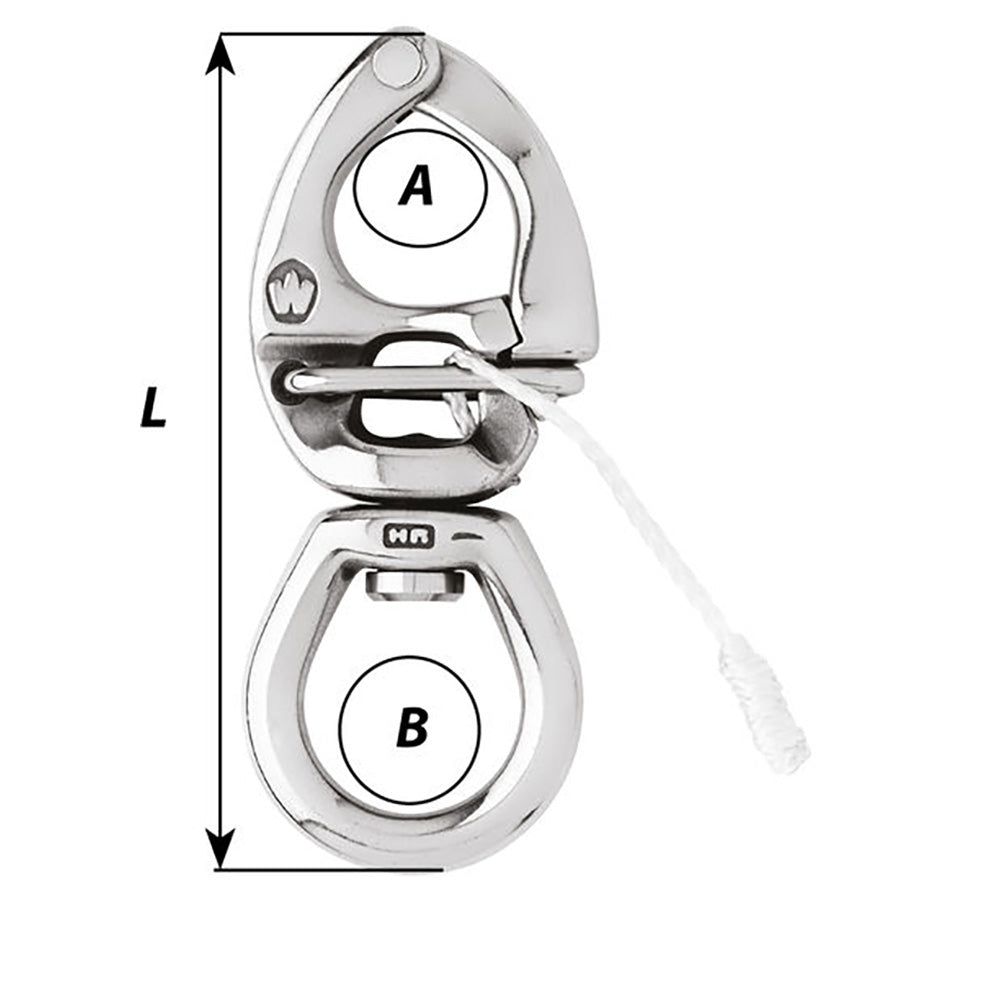

Dimensions:

  • A: (inch) 1 11/32" / (mm) 34
  • B: (inch) 1 39/64" / (mm) 41
  • Length: (inch) 6 19/64" / (mm) 160

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
