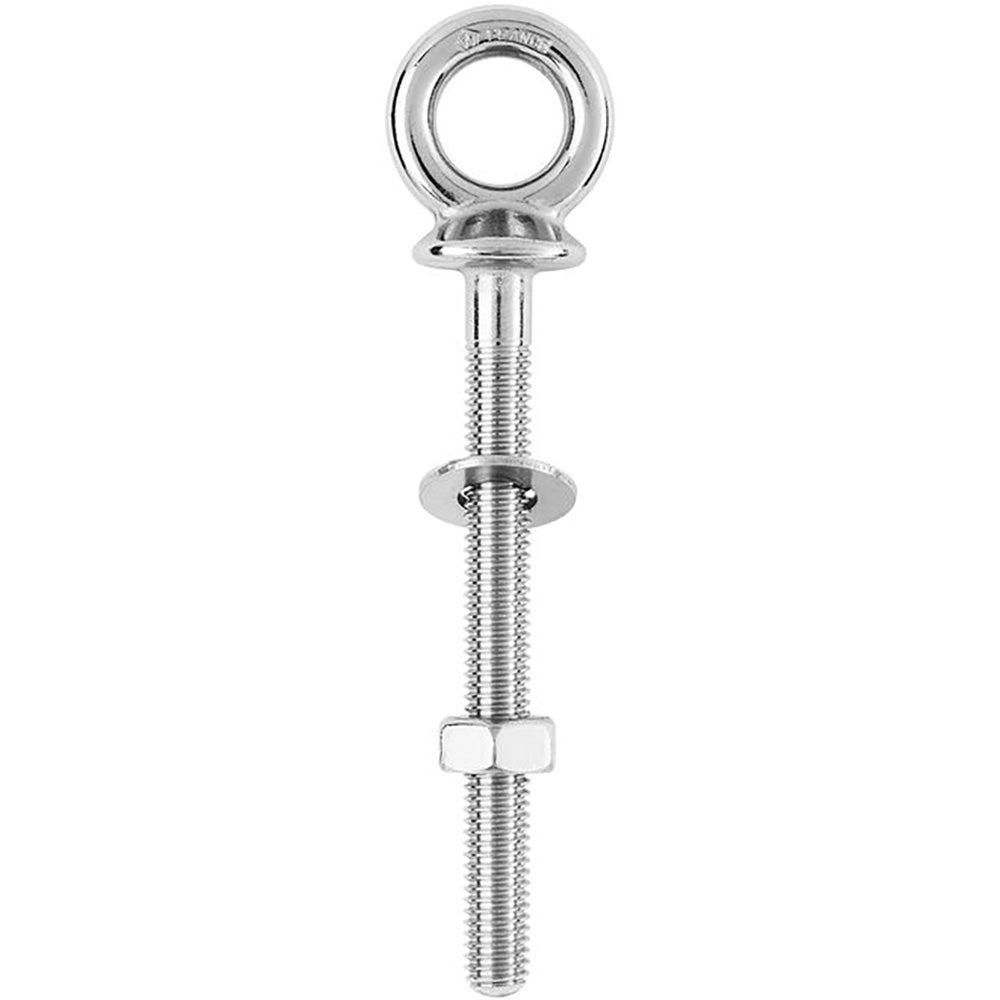

Wichard Eye Bolt - M10 x 150mm - Length 100mm [6495W]

Wichard Eye Bolt - M10 x 150mm - Length 100mm [6495W]

$77.67 USD
$91.38 USD $77.67 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

Eye Bolt - M10 x 150mm - Length 100mm

Features:

  • A complete range of single piece forged products for fastenings applications
  • Outstanding working and breaking loads
  • Available in different sizes
  • Max tightening torque: 36 Nm

Applications:

  • Various fastening applications
  • Towing application
  • Waterskiing lines attachment

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 3520 / (kg) 1600
  • Breaking load: (lb) 5950 / (kg) 2700
  • Weight: (lb) 0.216 / (g) 98

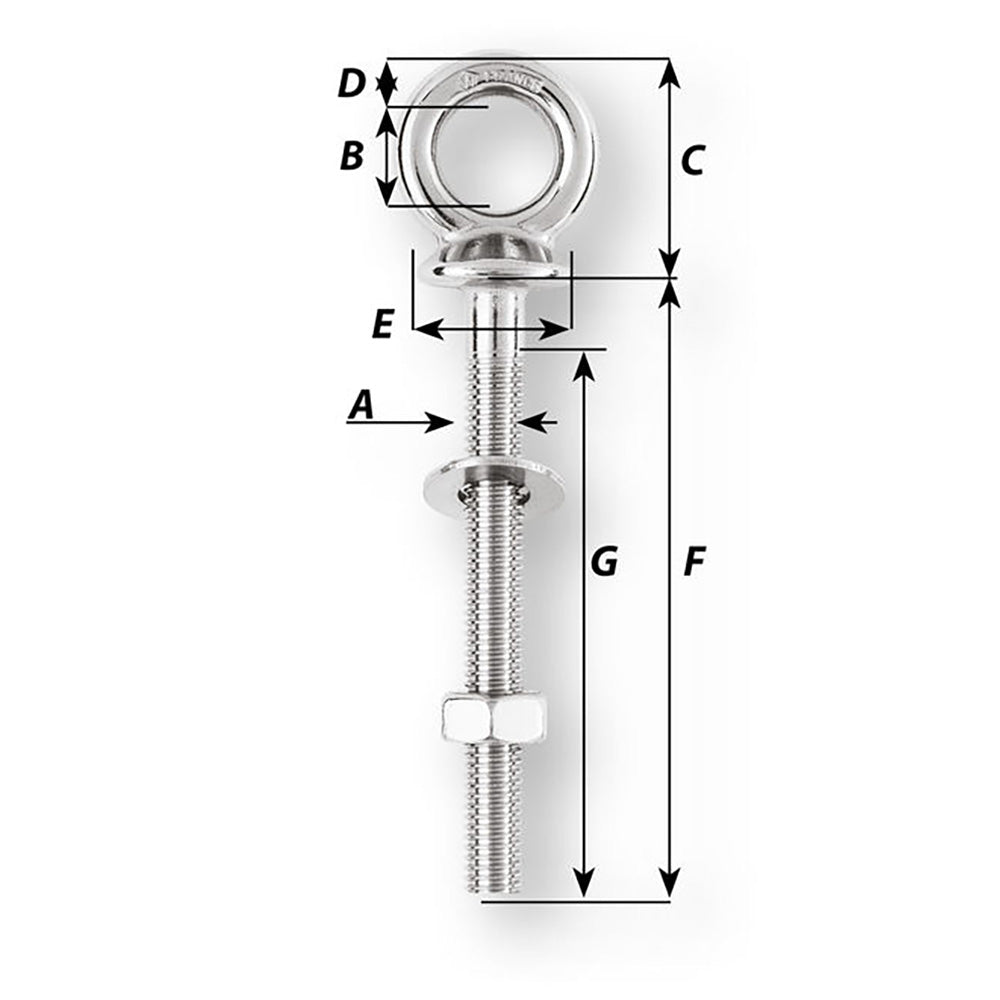

Dimensions:

  • A: (mm) M10 x 150
  • B: (inch) 5/8" / (mm) 16
  • C: (inch) 1 27/64" / (mm) 36
  • D: (inch) 9/32" / (mm) 7
  • E: (inch) 63/64" / (mm) 25
  • F: (inch) 3 15/16" / (mm) 100
  • G: (inch) 3 15/32" / (mm) 88

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
