Wichard Captive Pin Bow Shackle - Diameter 6mm - 1/4" [1443W]

Wichard Captive Pin Bow Shackle - Diameter 6mm - 1/4" [1443W]

$38.23 USD
$44.98 USD $38.23 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

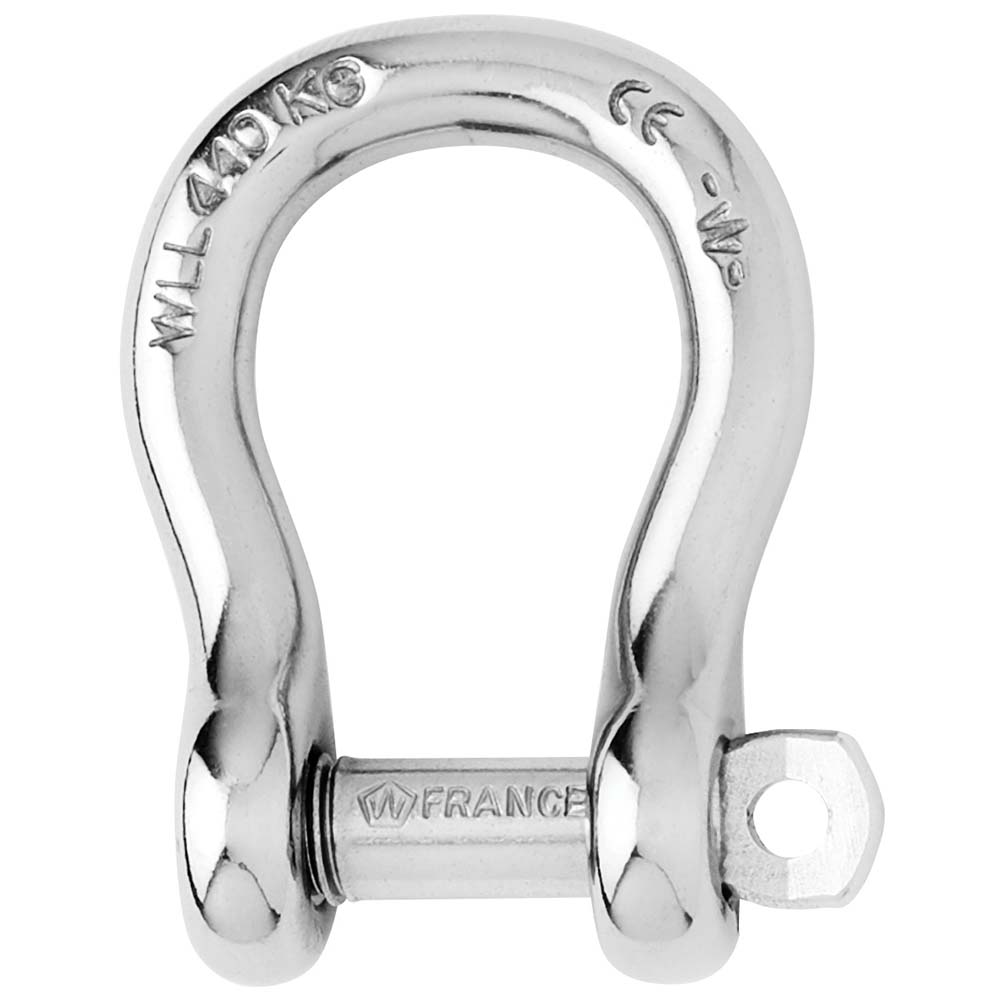

Captive Pin Bow Shackle - Diameter 6mm - 1/4"

Features:

  • Captive pin bow shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • Single handed operation for more safety
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1320
  • WLL (lb) 970
  • Breaking load (lb) 4850
  • Weight (lb) 0.073

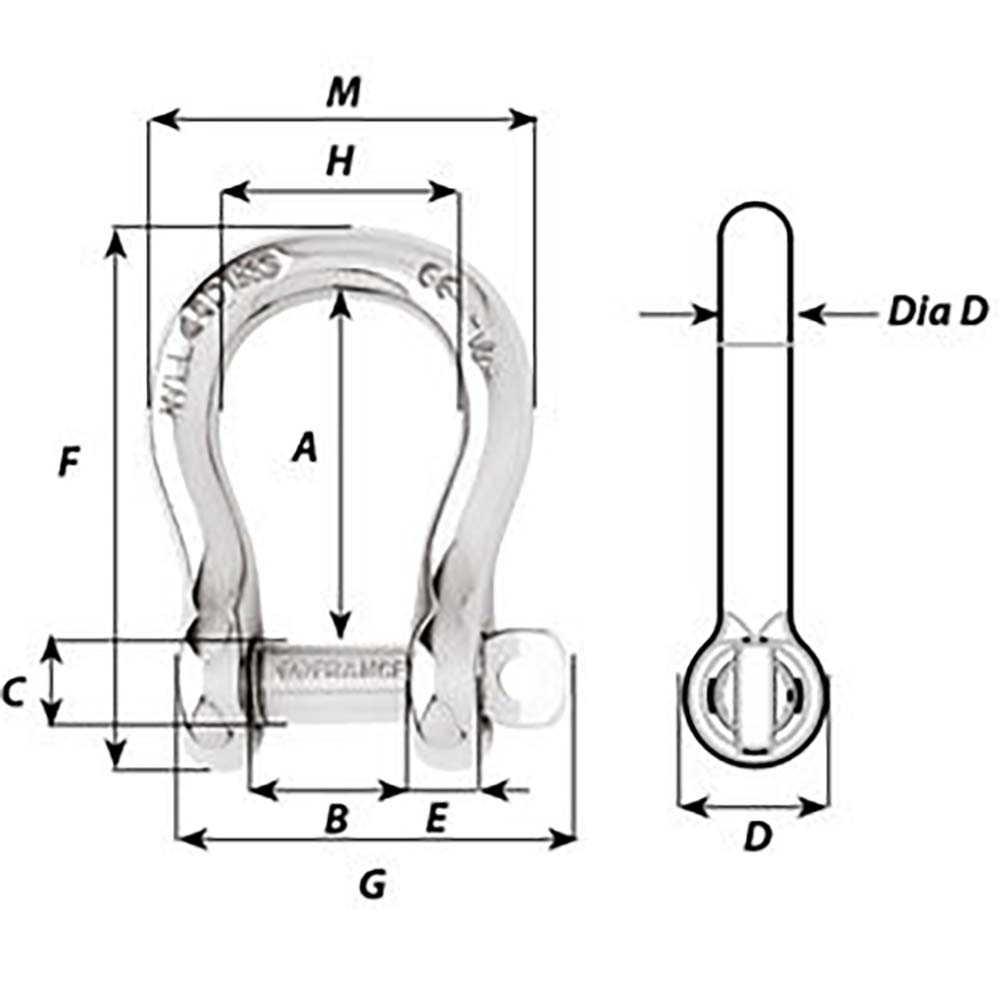

Dimensions (see 2nd image):

  • A (inch) 1-1/16"
  • B (inch) 15/32"
  • C (inch) 9/32"
  • D (inch) 35/64"
  • D diameter (inch) 15/64"
  • E (inch) 15/64"
  • M (inch) 1-7/32"
