Shakespeare

Shakespeare 5215-C-X 3' VHF Antenna [5215-C-X]

Shakespeare 5215-C-X 3' VHF Antenna [5215-C-X]

$167.99 USD
$179.99 USD $167.99 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

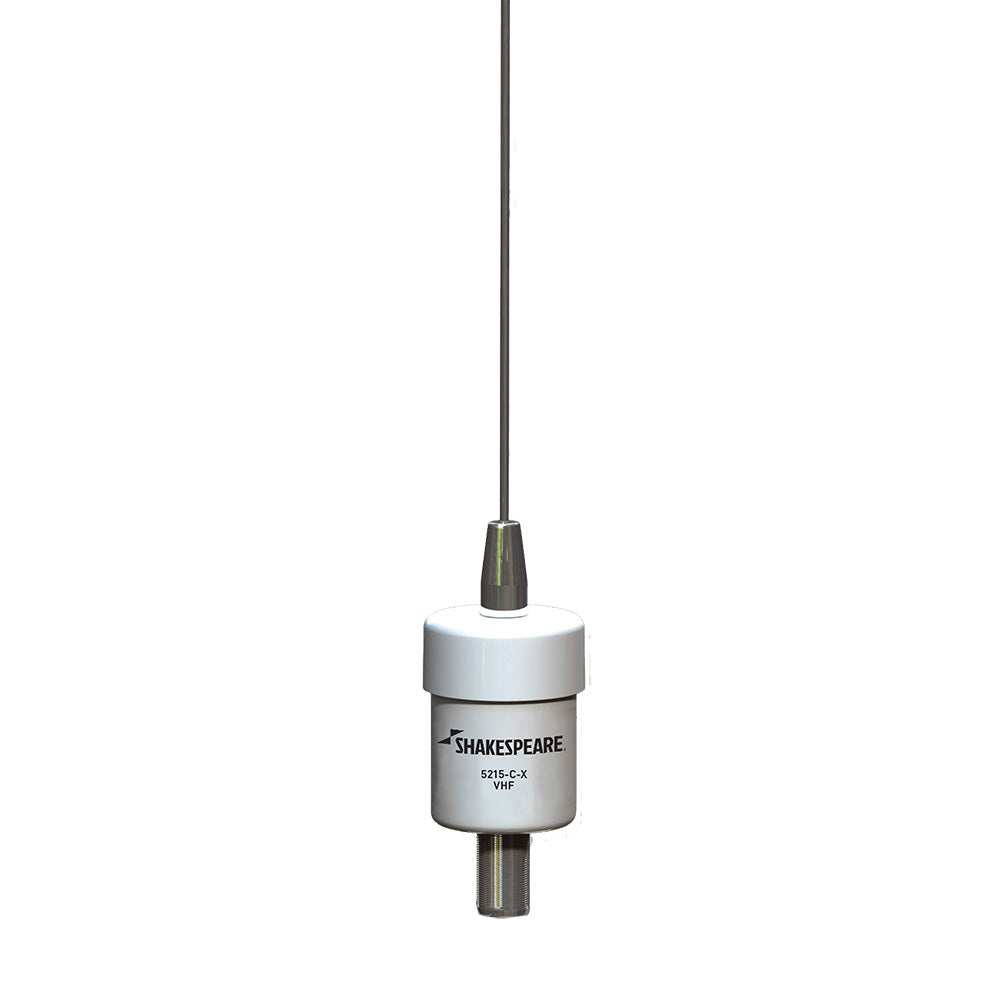

Shakespeare Style 5215-C-X SQUATTY BODY® VHF Marine
36" LENGTH, 3dB

END-FED 1/2-WAVE STAINLESS STEEL WHIP

Same as the Style 5215 but comes with 60' RG-8/X low-loss cable and PL-259 connectors.

A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.

  • Hermetically sealed, tin-plated copper wire coil
  • Stainless steel body and whip
  • SO-239 connector
  • Includes 60' RG-8/X low-loss cable and PL-259 connectors.
  • Mount: Stainless steel "L" bracket supplied, for mast mounting
  • One section
  • Shakespeare Limited Warranty: 2 years

Technical Specifications:


Frequency: VHF Marine band
Bandwidth: 7 MHz
SWR: 1.5:1 @ 156.8 MHz
Impedance: (Ohms): 50
Gain: 3 dB
Max Input (Watts): 50
DC Ground: NO
Termination: 60' RG-8X cable
Height (feet): 3'
Polarization: Vertical
Radiation pattern: Omni-directional

Specifications:

  • Antenna Band: VHF
  • Color: Stainless
  • Construction: Stainless Steel
  • Length (Inches): 36"
  • Box Dimensions: 4"H x 4"W x 44"L WT: 4.2 lbs
  • UPC: 719441100155

Quick Guide (pdf)
