Shakespeare

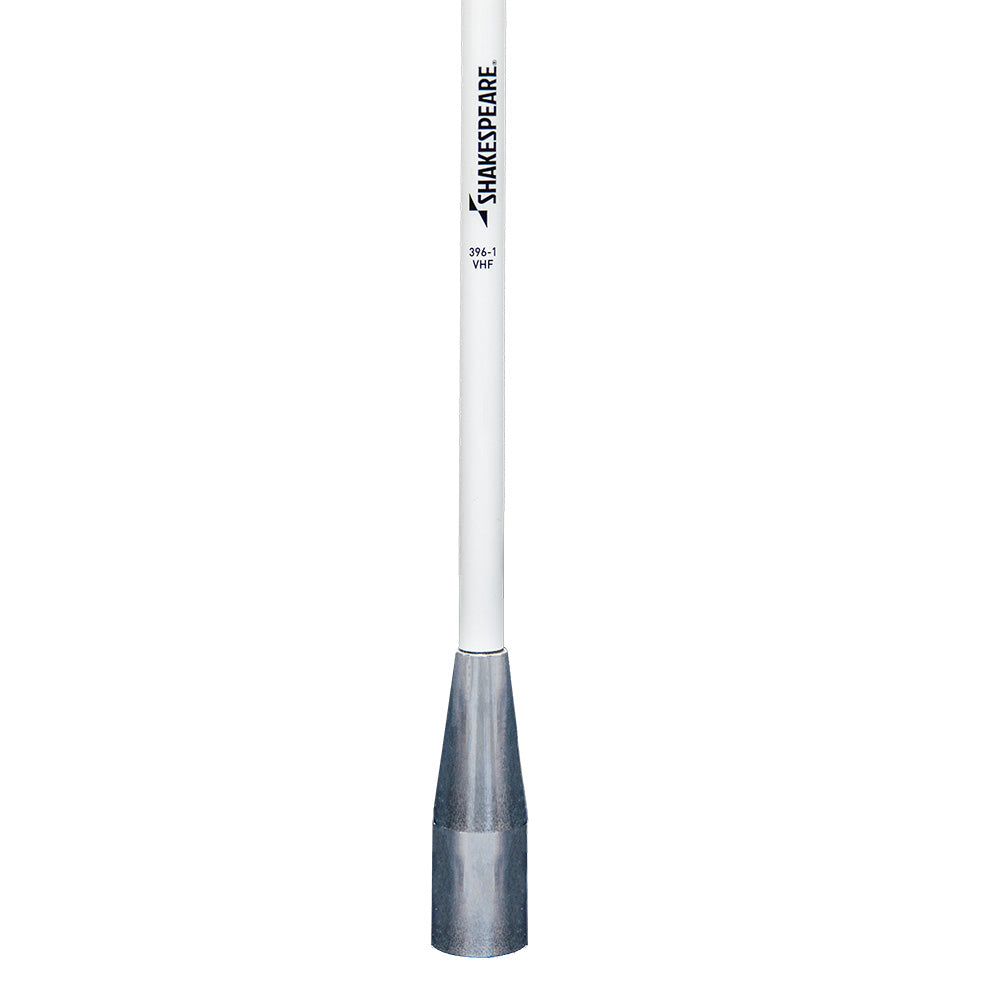

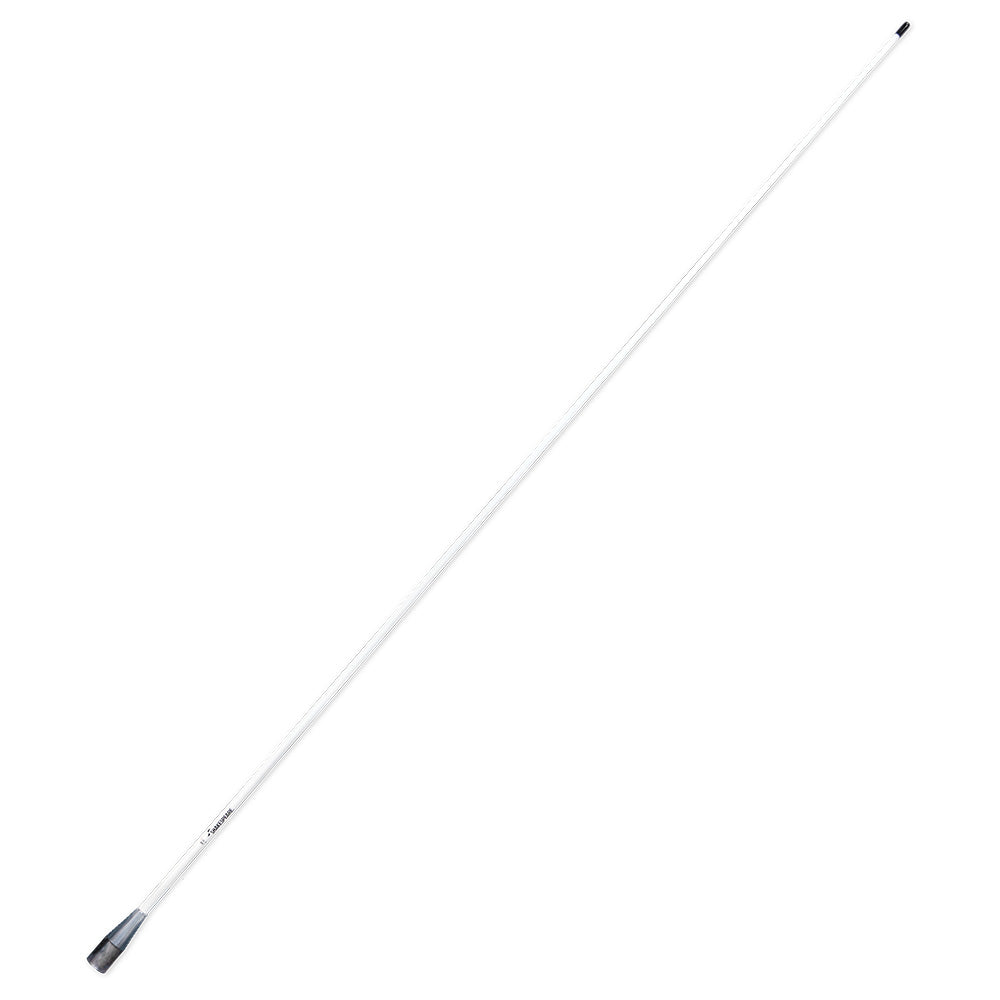

Shakespeare 396-1 5' VHF Antenna [396-1]
Shakespeare 396-1 5' VHF Antenna [396-1]
Regular price
$183.99 USD
Regular price
$199.99 USD
Sale price
$183.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA
Style 396-1 VHF 3dB
Center-fed 1/2-wave coaxial sleeve
Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.
- Brass and copper elements
- Chrome-plated brass ferrule with standard 1-14 thread
- Includes 15' RG-58 cable and a PL-259 connector
- Suggested mount: Style 4187 Ratchet Mount
- One section
Technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | (within 2.0:1 SWR): 5 MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Impedance | (Ohms): 50 |
| Gain: | 3 dB |
| Max Input (Watts): | 50 |
| DC Ground: | NO |
| Termination: | 15' RG-58 cable |
| Height (feet): | 5 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
Specifications:
- Antenna Band: VHF
- Color: White
- Construction: Fiberglass
- Ferrule Type: Chrome Plated
- Length (Inches): 60"
- Box Dimensions: 3"H x 3"W x 63"L WT: 2.9 lbs
- UPC: 719441100018
Quick Guide (pdf)
