Schaefer Marine

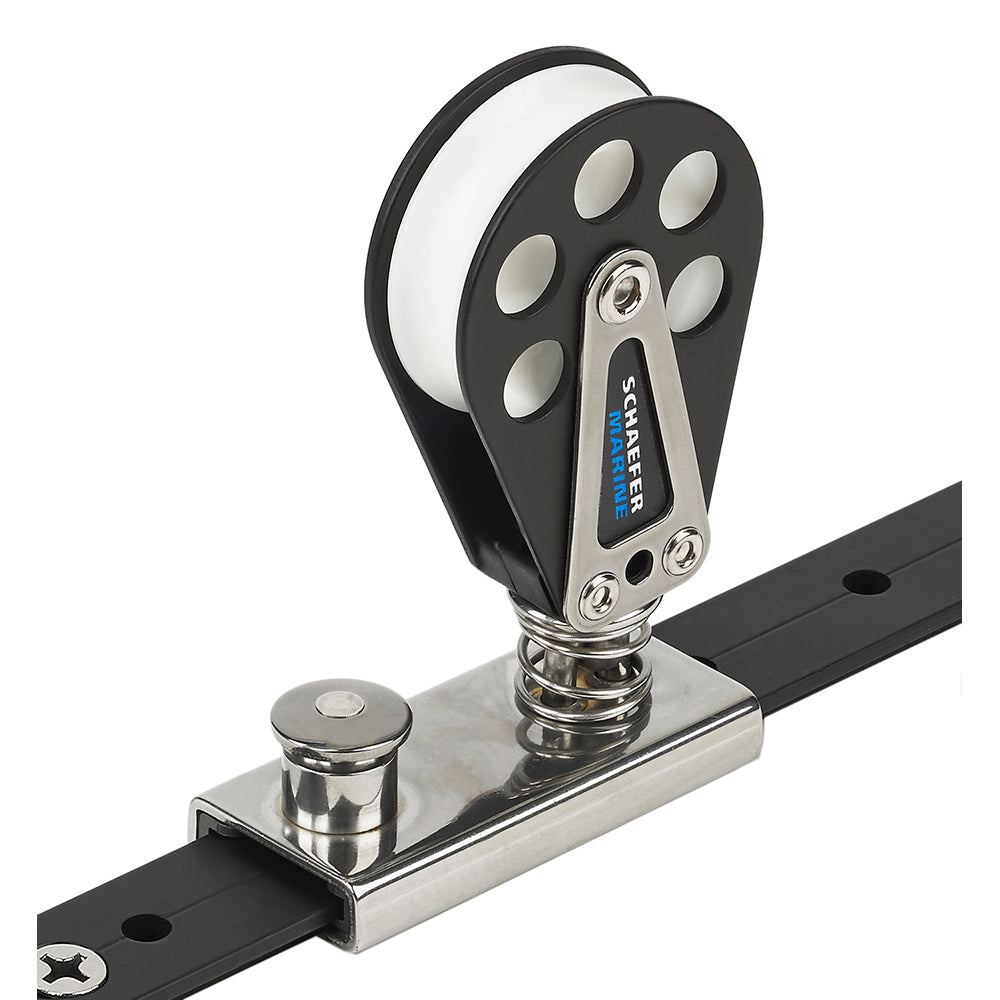

Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track [504-82]
Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track [504-82]
Regular price
$226.99 USD
Regular price
$271.45 USD
Sale price
$226.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA
Spring Loaded/Lined Slide/Aluminum for 1" T-Track
Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications:
- Track Size 1" x 1/8" (25 mm x 3 mm)
- Max. Boat Length- 27' (8m)
- Max. Boat Weight- 5000 lbs. (2270 kgs)
- Sail Area- 315 sq. ft (29 m2)
- Sheave Diameter 2" (51 mm)
- Max Line 7/16" (11 mm)
- Length 3" (76 mm)
- Width 1-1/4" (31 mm)
- Height 4-5/32" (105 mm)
- Bearing Height 2-7/32" (56 mm)
- SWL 1750 lbs. (795 kg)
- Weight 7.0 oz. (198 g)
