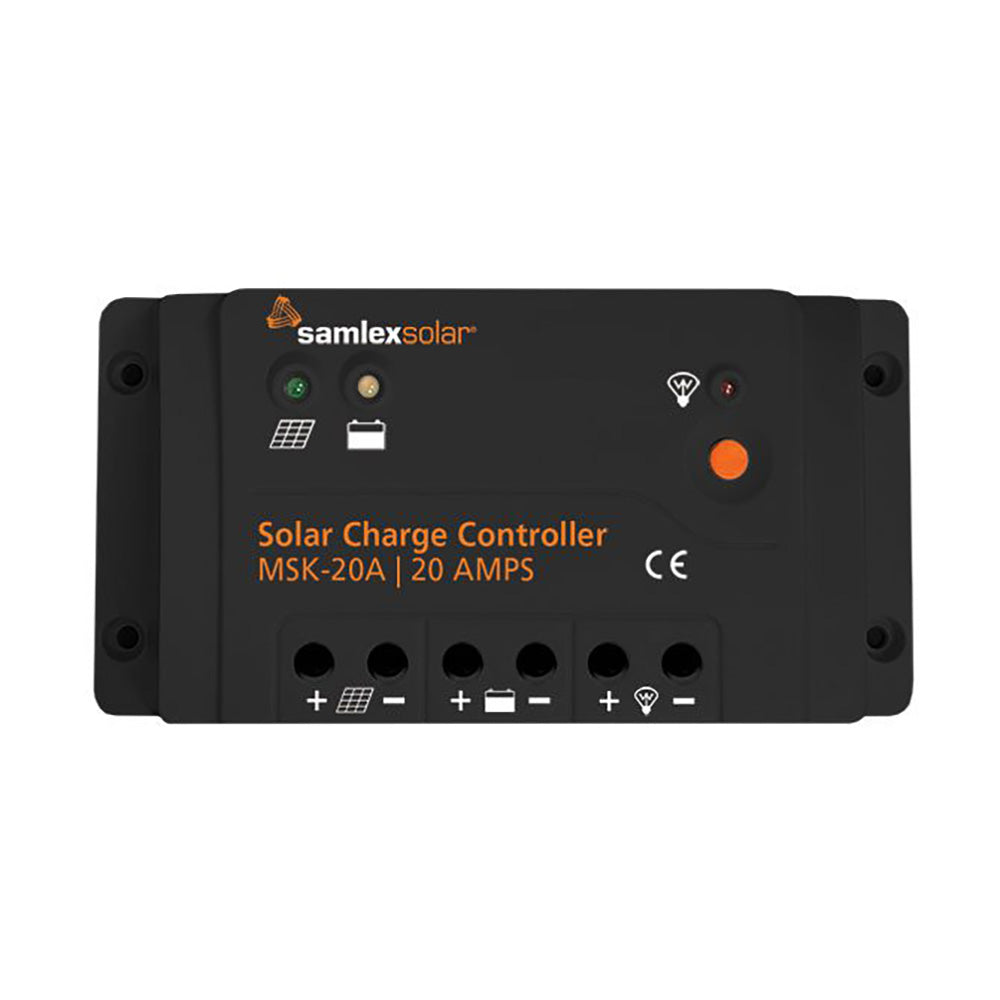

Samlex 20A Solar Charge Controller - 12/24V [MSK-20A]

Samlex 20A Solar Charge Controller - 12/24V [MSK-20A]

$93.10 USD
$116.40 USD $93.10 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

20A Solar Charge Controller - 12/24V

The MSK-20A is a 3-stage intelligent series-type PWM charge controller. It is based on an advanced design using a microcontroller for digital accuracy and fully automatic operation. It can be used for 12V or 24V battery systems.

Features:

  • 3-stage intelligent Series Type PWM charging
  • Automatic battery voltage detection: 12V / 24V
  • 100% input and output within -35 degrees C to +50 degrees C
  • Electronic protections: overheating, overcharging, over-discharge, overload, and short circuit
  • Reverse protection: any combination of solar module and battery

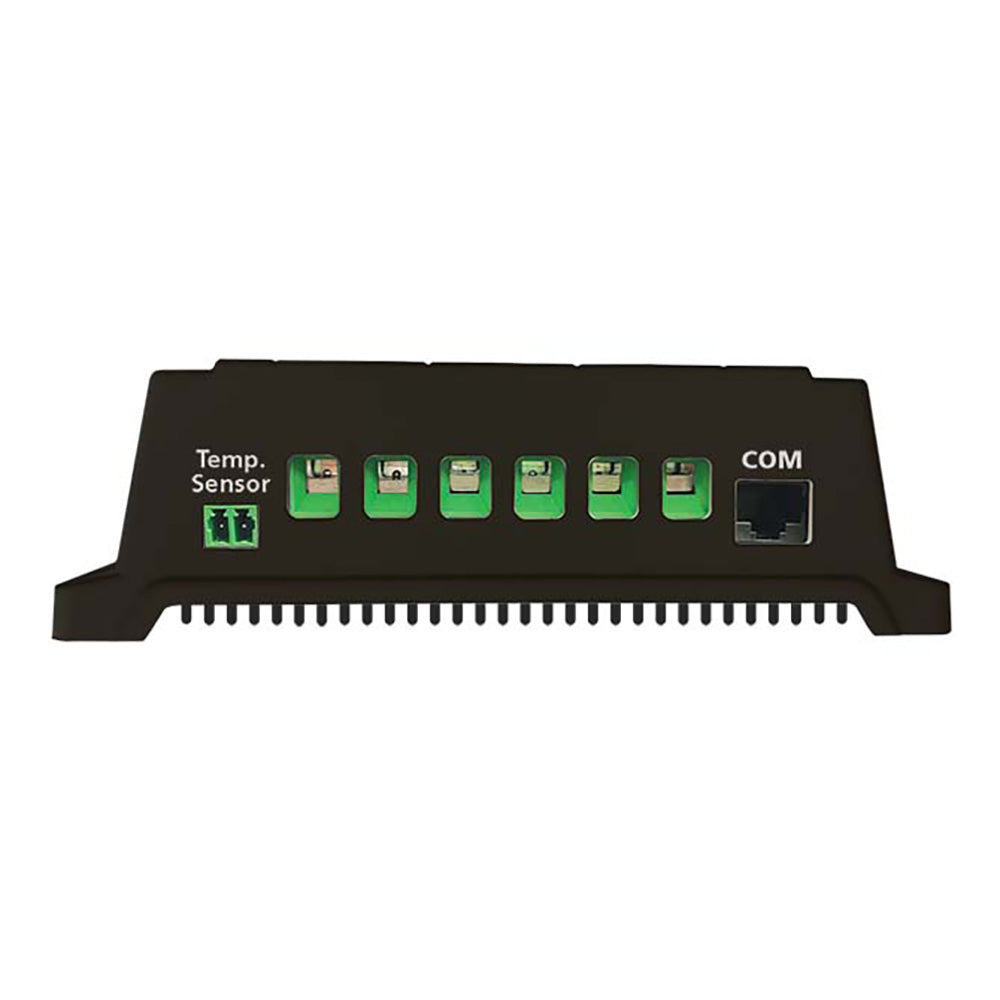

  • Optional MSK-TS External Temperature Sensor

Applications:

  • Recreational and service vehicles
  • Off-grid grid
  • Portable charging kits
  • Boats and marine crafts
  • Fieldwork or mobile offices
  • Telecommunications

Specifications:

  • Input: 12V / 24V
  • Amps: 20 amps
  • Weight: 0.66 (lbs)
  • Weight: 0.3 (kgs)
  • Dimensions: 6.28 x 3.2 x 1.89 in.
  • Dimensions: 159.6 x 81.4 x 47.88 (mm)

Quick Guide (pdf)
Owner's Manual (pdf)
