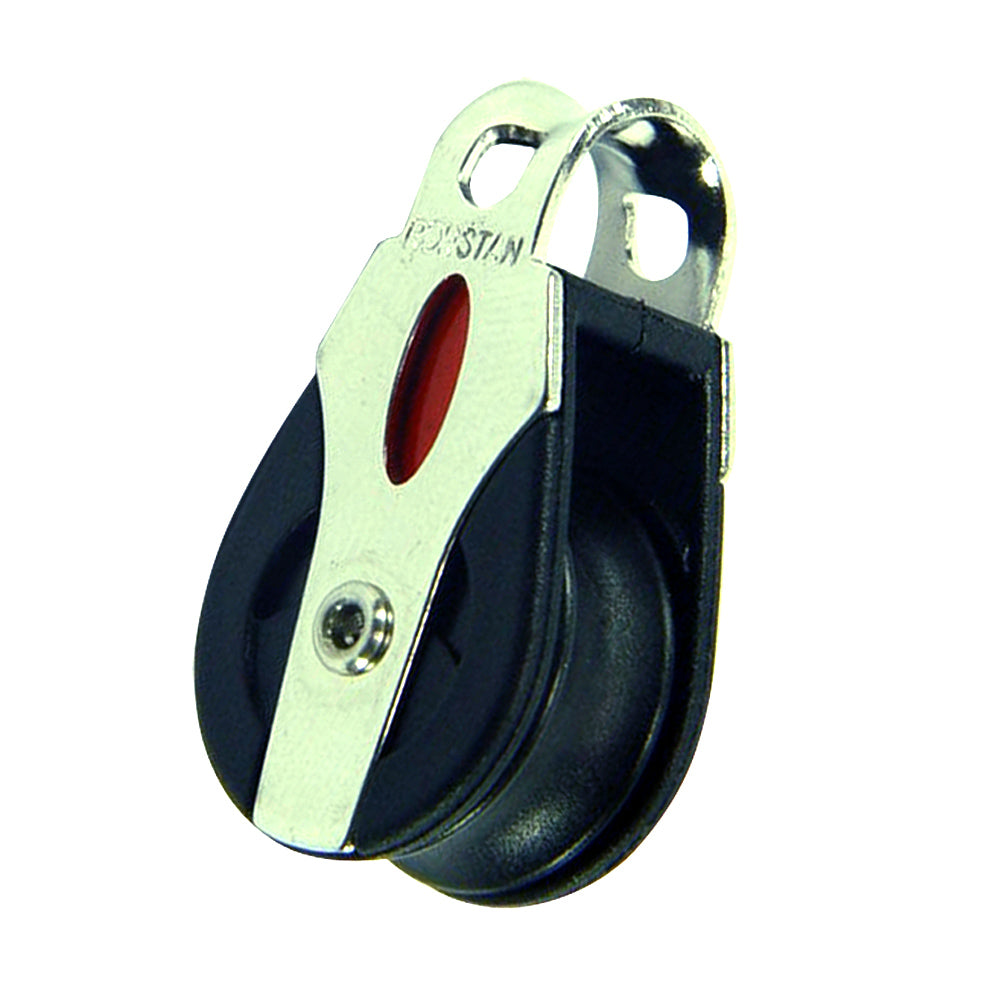

Series 20 Ball Bearing Block - Single - Loop Top

Features:

  • Low friction
  • High static and dynamic load capacity
  • Lightweight
  • Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
  • Can be fitted with a shackle in either of two planes to allow correct alignment of the block


Applications:
  • Dinghy control lines
  • Dinghy Vangs
  • Cunninghams
  • Traveller controls


Materials:
  • U.V. Stabilized Acetal sheaves
  • Stainless steel ball bearings
  • Grade 316 stainless steel load strap and head fitting
  • Impact and UV resistant, fiber reinforced Nylon cheeks


=Specifications:
Sheave Ø: 20mm(3/4")
Max. Rope Ø: 6mm(1/4")
M.W.L.: 250kg(550lbs)
B. L.: 550kg(1,210lbs)
Weight: 16g(0.6oz)
