Renogy/Victron Solar Bundle for Cruisers

Renogy/Victron Solar Bundle for Cruisers

Regular price $749.00 USD
Regular price $815.00 USD Sale price $749.00 USD
Sale Sold Out
Shipping calculated at checkout.

Quantity

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

The True Wind "Hybrid" Solar Bundle: 200W Lightweight Solar + Victron Intelligence

Why settle for a generic kit when you can have the "Best of Both Worlds"? By combining Renogy’s industry-leading flexible panel technology with Victron Energy’s world-class power management, we’ve created a system that is as smart as it is durable.

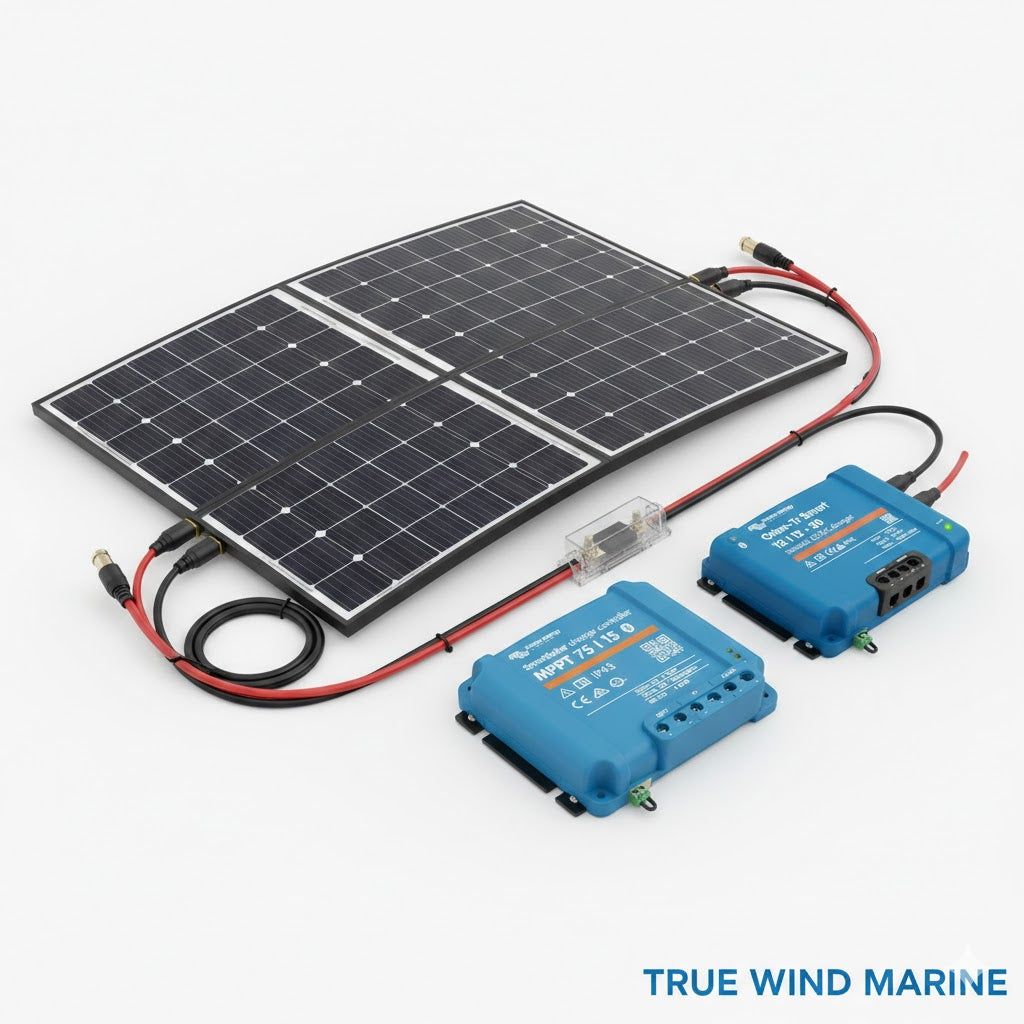

What’s Inside the Bundle?

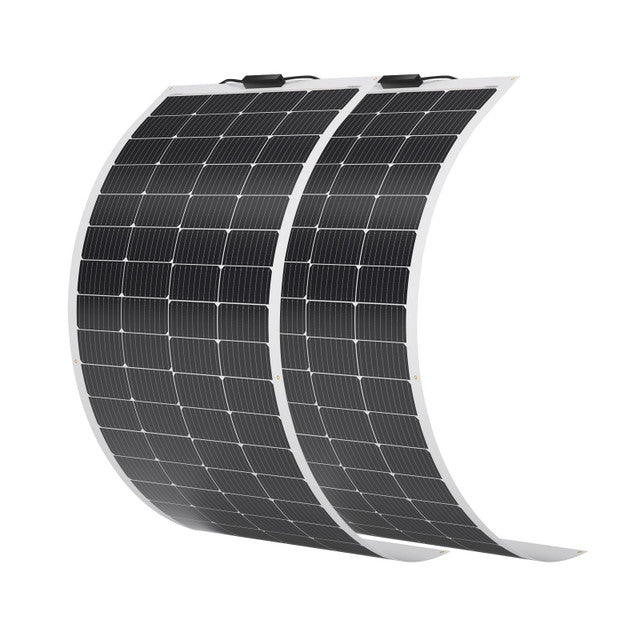

  • (2) Renogy 100W Flexible Monocrystalline Panels: Ultra-lightweight and low-profile. Perfect for mounting on a bimini or curved deck without adding windage or weight aloft.

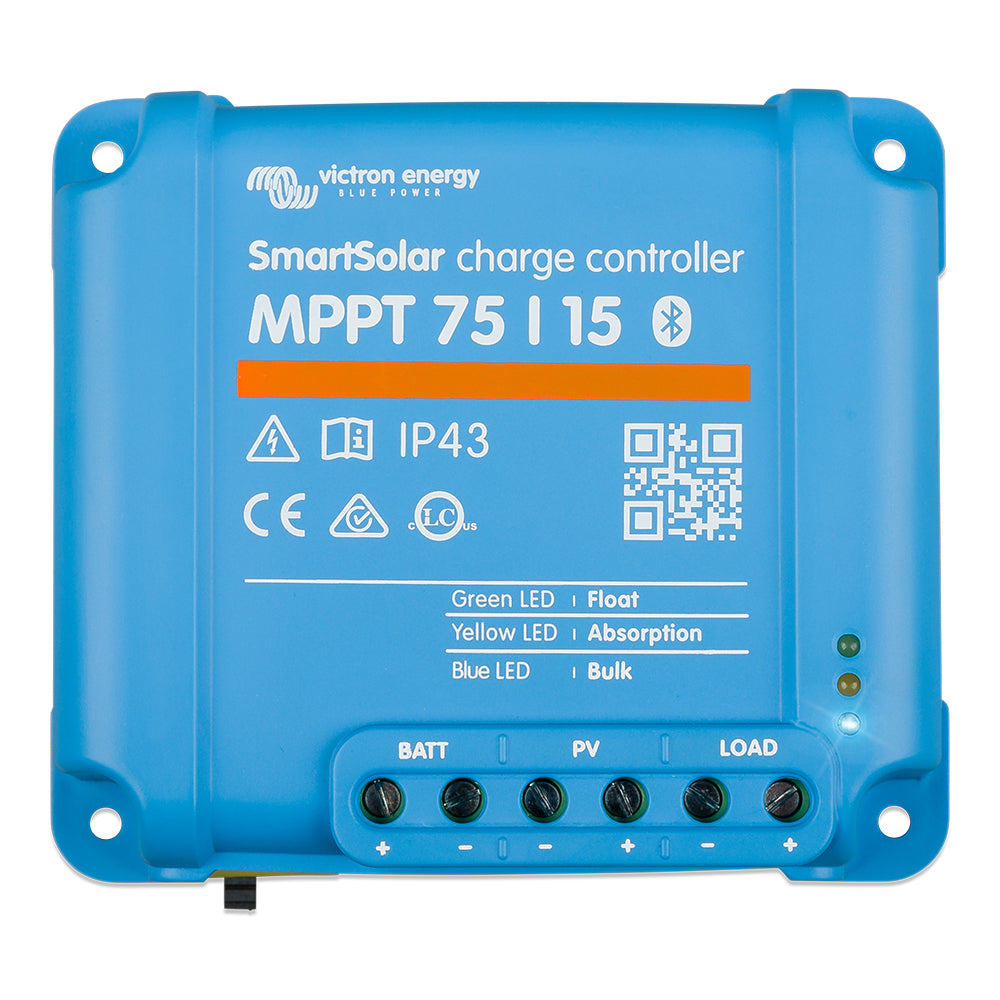

  • (1) Victron SmartSolar MPPT 75/15: The "brains" of the operation. Featuring built-in Bluetooth for real-time monitoring on your smartphone.

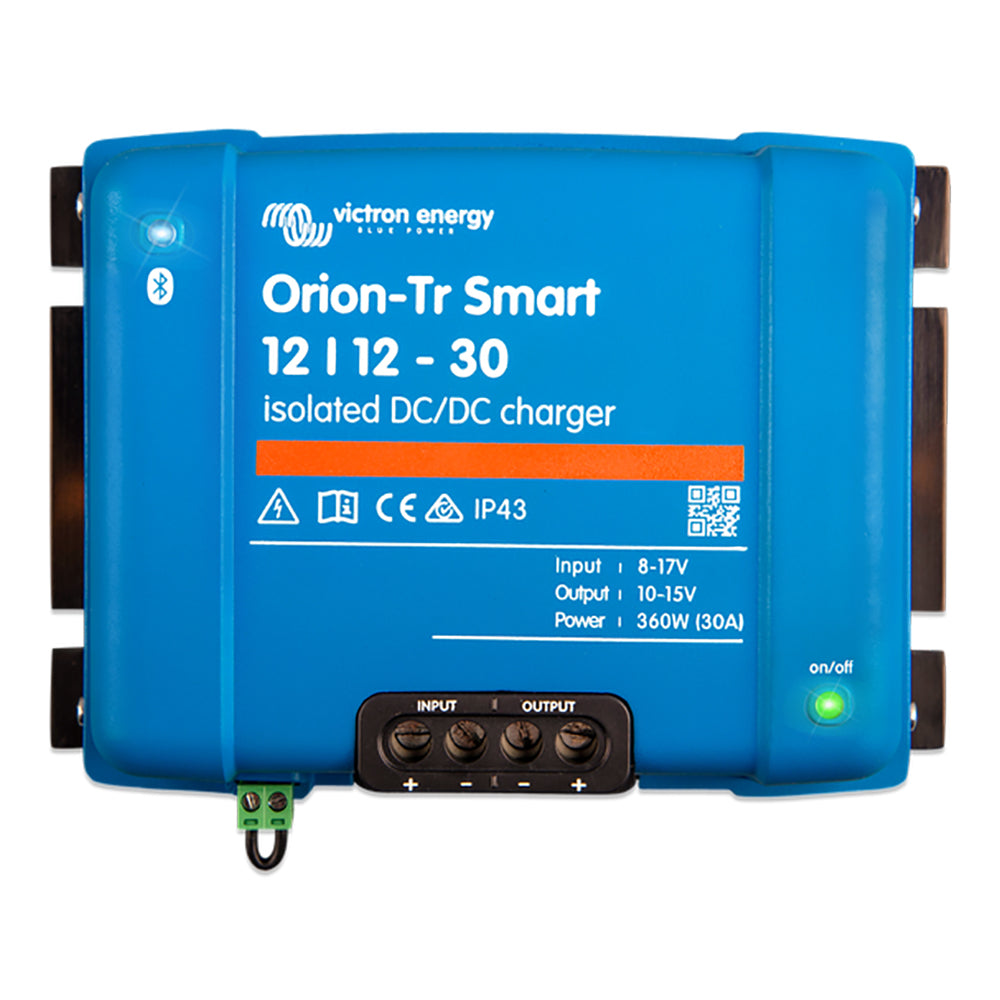

  • (1) Victron Orion-Tr Smart 12/12-30A DC-DC Charger: The essential "firewall" for boats with modern alternators or Lithium batteries.

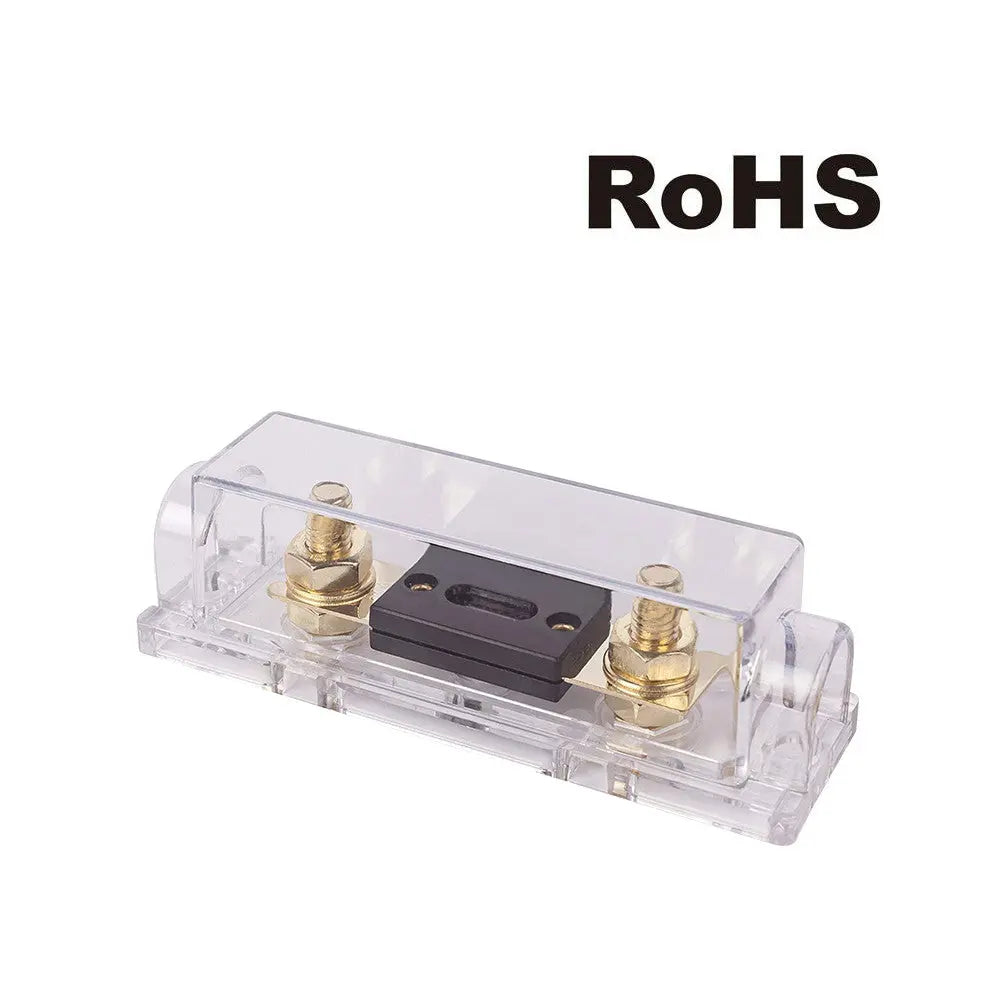

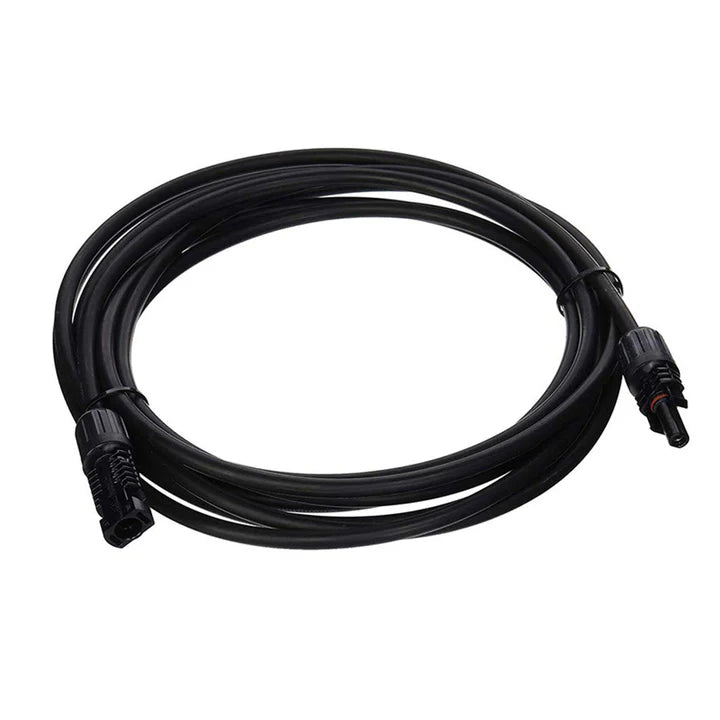

  • Full Marine-Grade Installation Kit: Includes 20ft of 10AWG MC4 solar cables, high-capacity 6AWG tinned copper battery wire, and pre-sized safety fuses.

Why the True Wind Hybrid System is Better:

  1. Bluetooth Monitoring as Standard
    Most basic kits leave you in the dark. With the included Victron SmartSolar controller, you can open the VictronConnect app on your phone to see exactly how many Watts your panels are producing and the health of your battery bank. No separate battery monitor required.
  2. Alternator & Battery Protection
    If you’re upgrading to Lithium, a standard solar kit isn't enough. Modern Lithium banks can pull so much current they actually burn out engine alternators. Our included Orion-Tr Smart DC-DC Charger regulates that flow, protecting your engine while ensuring your house bank gets a perfect, high-speed charge every time the motor is running.
  3. Flexible and Lightweight Panels
    Unlike heavy glass panels that require bulky stainless frames, our Renogy Flexible Panels weigh just a few pounds. They can be sewn into canvas or glued to the deck, maintaining your boat’s sleek lines and reducing the "top-heavy" feel in a seaway.
  4.  Marine-Grade Components
    We don't use hardware-store wire. Every inch of cable in this kit is UL1426 Tinned Copper. In a salt-air environment, standard copper wire turns to "green rot" in months; our tinned wire is built to last the life of your boat.

"We chose the 100W Flexible panels specifically for sailors. They are low-profile enough to be mounted on a bimini without adding windage, and light enough that they won't sag your canvas. Combined with the Victron brains, it’s the most reliable 200W system you can put on a 30-45ft boat."The True Wind Crew

Technical Specifications

Component Technical Specs Dimensions & Weight
(2x) Renogy 100W Flexible Panels Type: Monocrystalline PERC
Max Power (Pmax): 100W (Total 200W)
Operating Voltage (Vmp): 18.9V
Open Circuit Voltage (Voc): 22.5V
Cell Efficiency: 21%
Protection: IP68 Junction Box / IP67 Connectors
Dimensions: 48.0 x 21.6 x 0.08 in
Weight: 4.2 lbs (1.9 kg) each
Flexibility: Up to 248°
Victron SmartSolar MPPT 75/15 Max Charge Current: 15A
Max PV Open Circuit: 75V
Nominal PV Power (12V): 220W
Peak Efficiency: 98%
Connectivity: Built-in Bluetooth SmartProtection: Short circuit, Reverse Polarity, Over Temperature
Dimensions: 3.94 x 4.45 x 1.57 in
Weight: 1.1 lbs (0.5 kg)
Terminals: 6mm² / AWG10
Victron Orion-Tr Smart 12/12-30A Nominal Input/Output: 12V / 12V
Cont. Output Current: 30A (at 40°C)
Output Voltage Adjust: 10–15V
Efficiency: 87%
Connectivity: Built-in Bluetooth SmartHousing: IP43 (Electronic) / IP22 (Connection)
Dimensions: 5.1 x 7.3 x 3.2 in
Weight: 4.0 lbs (1.8 kg)
Terminals: 16mm² / AWG6
Installation Cabling Solar Cables: 10 AWG (6mm²) Multi-strand Tinned Copper
Battery Cables: 6 AWG (16mm²) UL1426 Marine Tinned CopperFusing: MIDI Fuse (40A) & ATO Fuse (20A)
Cable Lengths: 20ft Solar Leads / 10ft Battery Leads
