Raymarine
Raymarine Hydraulic Linear Drive Type 3 - 24V [M81203]
Raymarine Hydraulic Linear Drive Type 3 - 24V [M81203]
Regular price
$3,737.99 USD
Regular price
$3,899.99 USD
Sale price
$3,737.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

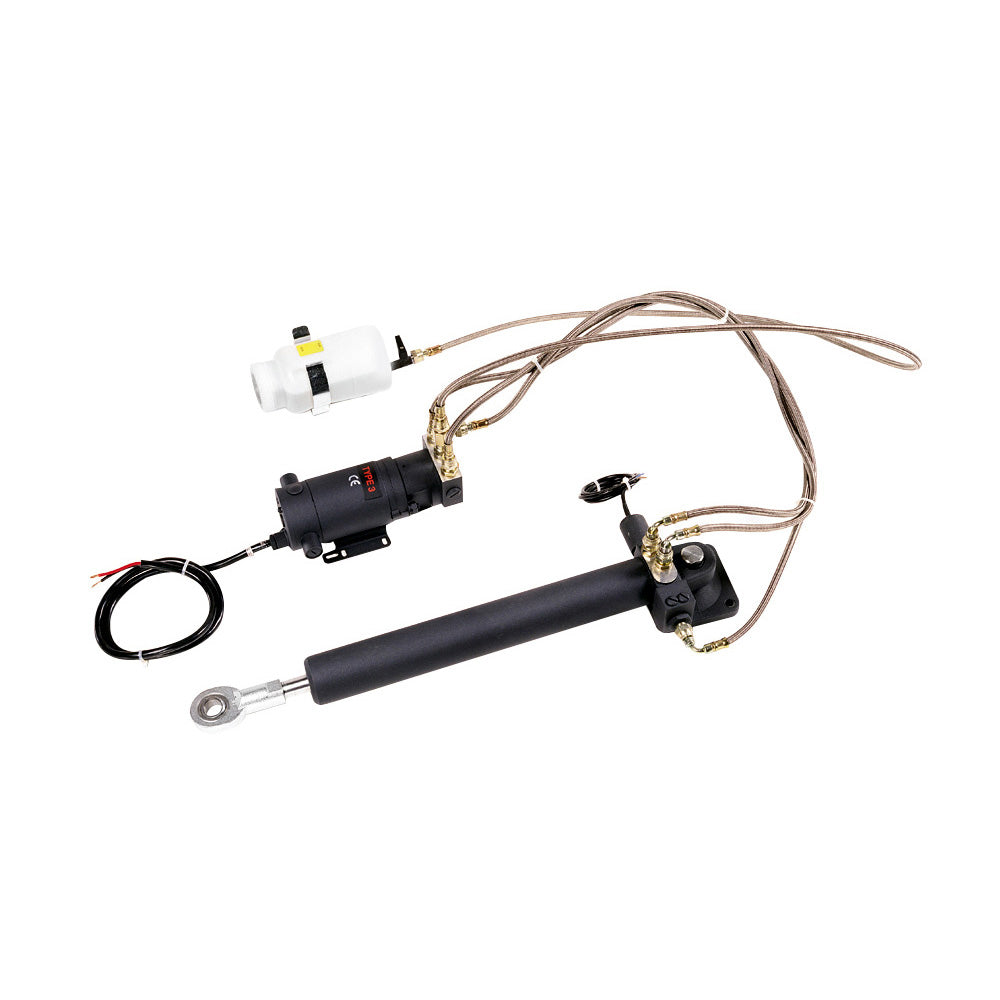

Hydraulic Linear Drive Type 3 - 24V
The hydraulic linear drive system is designed for boats with existing mechanical steering systems, not hydraulic steering systems. It provides a totally isolated autopilot steering system consisting of:
Hydraulic ram: a self-contained autopilot steeringcylinder with a load limiting system and a built in clutch (to allow friction-free steering when the autopilot is not in use).
Reversing hydraulic pump: powers the hydraulic ram.
Hydraulic fluid reservoir: supplies hydraulic fluid to the system.
Specifications:
- Type: Pumps/Drives
- Box Dimensions: 10"H x 14"W x 36"L WT: 30.8 lbs
- UPC: 023193812038
