• Raymarine B175L Bronze Low Profile Thru Hull 20 degree Tilted Element Transducer 1kW A80048
1 1

Raymarine

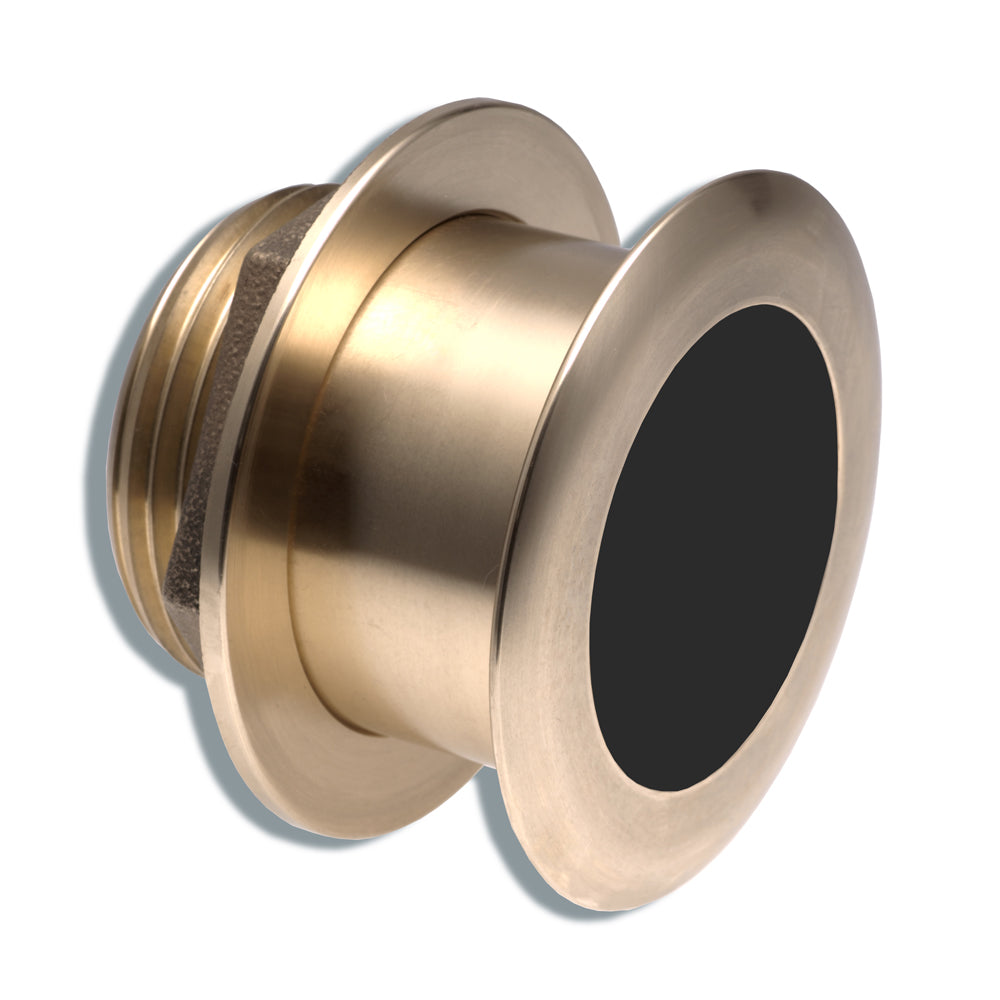

Raymarine B175L Bronze Low Profile Thru Hull 20 degree Tilted Element Transducer - 1kW [A80048]

Raymarine B175L Bronze Low Profile Thru Hull 20 degree Tilted Element Transducer - 1kW [A80048]

$1,699.00 USD
$0.00 USD $1,699.00 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

B175L Bronze Low Profile Thru Hull 20° Tilted Element Transducer 1kW

Features

  • Material: Bronze
  • For use with CP450C or CP470 Chirp Sonar Module
  • Power (RMS): 1Kw
  • Max Depth(ft): 2,500
  • Frequency (khZ): 40-60
  • Beam Width(L/H): 32°-21°
  • Records: Depth / Temperature
  • Approved Hull Material: Fiberglass / Wood
  • Cable Length (Ft/M): 33ft / 10M
  • Supported Deadrise / Transom Angles: 16-24° Deadrise
  • Note: Using a Single B175 or B75 requires the A80328 Single Operation Cable

Specifications:

  • Chirp: Low
  • Temperature: Yes
  • Mounting Style: Thru-Hull
  • Imaging: Standard
  • Speed Included: No
  • Box Dimensions: 8"H x 10"W x 12"L WT: 11.6 lbs
  • UPC: 723193729113
