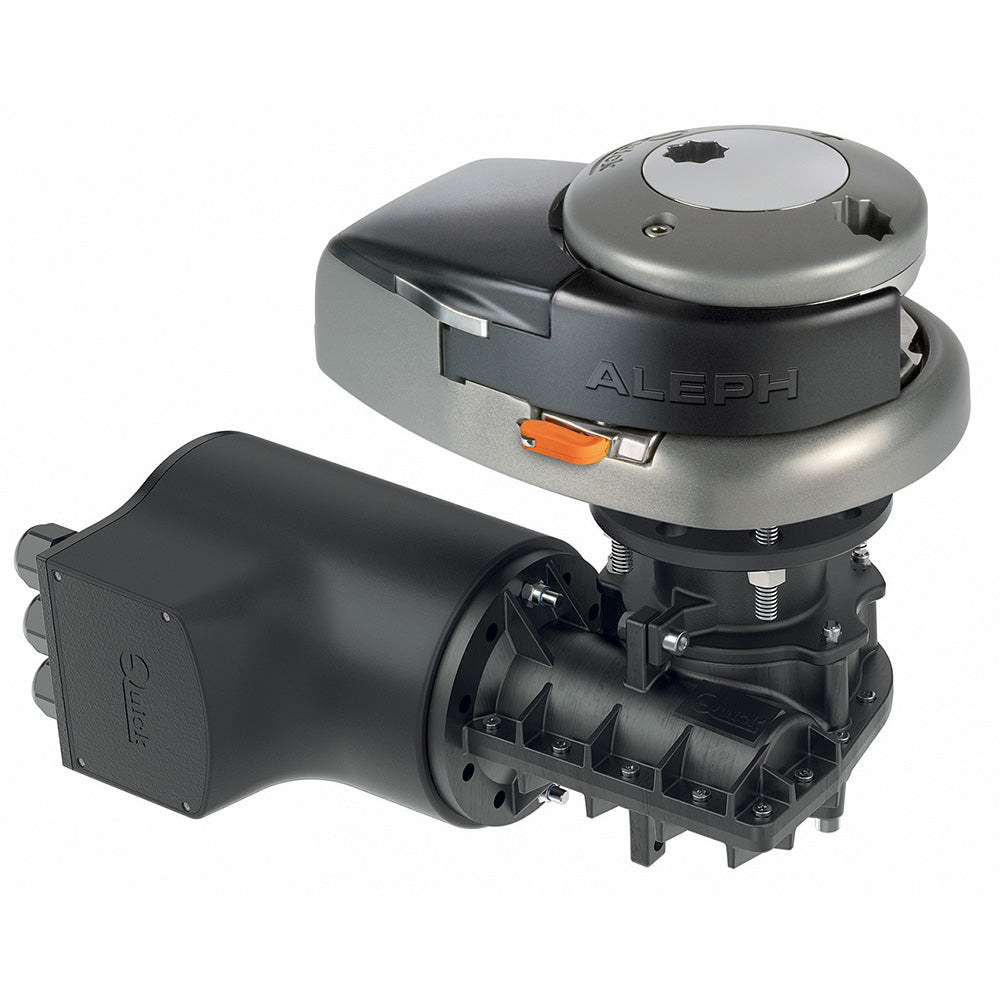

Quick Aleph AL3 1512 Windlass - 12V, 1500W, 10mm Gypsy to 5/8" Rope [FSAL15120010A00]

Aleph AL3 1512 Windlass - 12V, 1500W, 10mm Gypsy to 5/8" Rope

The AL3 vertical windlass features a hard-anodized aluminum construction, an IP67 watertight motor, an inspection lid, and an emergency manual lift system, making it suitable for boats with limited deck space. The unit includes a gearbox, solenoid, clutch handle, and mounting hardware.

Features:

• For 39-49' Boats
• Vertical windlasses
• 10mm - 3/8" gypsy
• Requires 5/8" three-strand polyester rope
• Includes T6315-12 Solenoid
• Base in anodized aluminium with hard oxide
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Manual Free-Fall system
• Emergency manual lift system
• Supplied with pressure lever
• Inspection lid
• IP67 watertight motor
• Anodized aluminium gearbox (1500W)

Specifications:

• Motor power - 1500W
• Motor supply voltage - 12V
• Maximum pull - 1100 Kg (2425 lb)
• Maximum working load - 470 kg (1036 lb
• Working load - 160 Kg (353 lb)
• Current absorption @ working load - 155 A
• Weight  - 45.9 lbs
