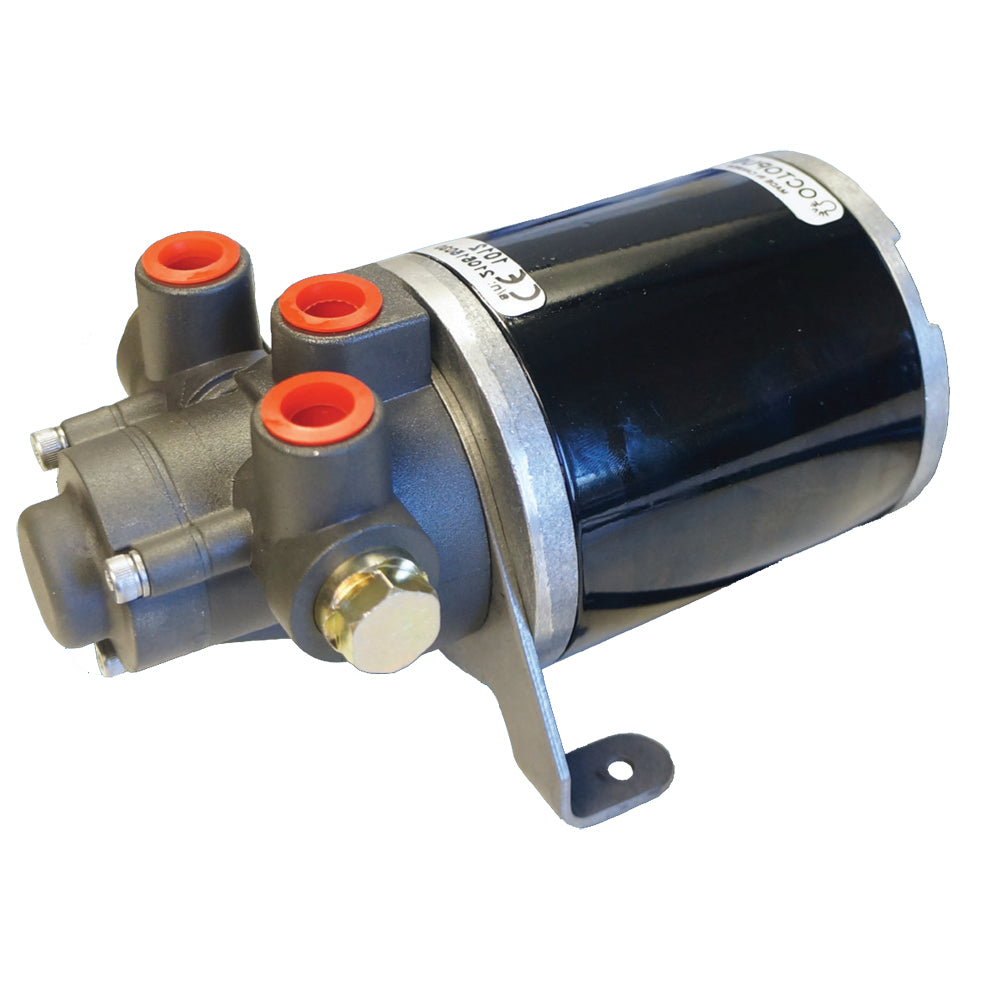

Octopus Hydraulic Gear Pump 12V 10-15CI Cylinder [OCTAFG1012]

Hydraulic Gear Pump 12V 10-15CI Cylinder

From the design team that brought you the legendary Octopus hydraulic
drives, our new gear pump offers industry leading reliability and
performance in a smaller, lighter, quieter package.

Features:

• Industry leading efficiency - lower power consumption, particularly
  under demanding conditions requiring higher flow rates equates to a major
  advantage over competing units.

• Cost saving - the increased efficiency and performance means the pumps
  can be used with smaller autopilot course computers than equivalent drive
  units.

• The smaller footprint of the compact gear pump increases installation
  flexibility.

• Lower noise and vibration make the gear pump particularly suitable for
  sailboat installations.

• Suitable for balanced or unbalanced cylinders.

• All models available for both 12v and 24v systems.

• Flow Rate: 1000CC/min

• Voltage: 12 Volt

• Cylinder Range: 10-15ci CYLINDER

• Average Current Draw: 5A

• Operating Temperature: -15 to +75'C (5 - 167'F)

• Waterproofing: IP55

• Ignition Protection: ISO 8846 & SAEJ1171

• EMC Compliance: EN60945-9-2002

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 5"H x 5"W x 9"L WT: 4.4 lbs
