Maretron Mini Bulk Cable - 100 Meter - Gray [NG1-100C]

Maretron Mini Bulk Cable - 100 Meter - Gray [NG1-100C]

$762.99 USD
$795.00 USD $762.99 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

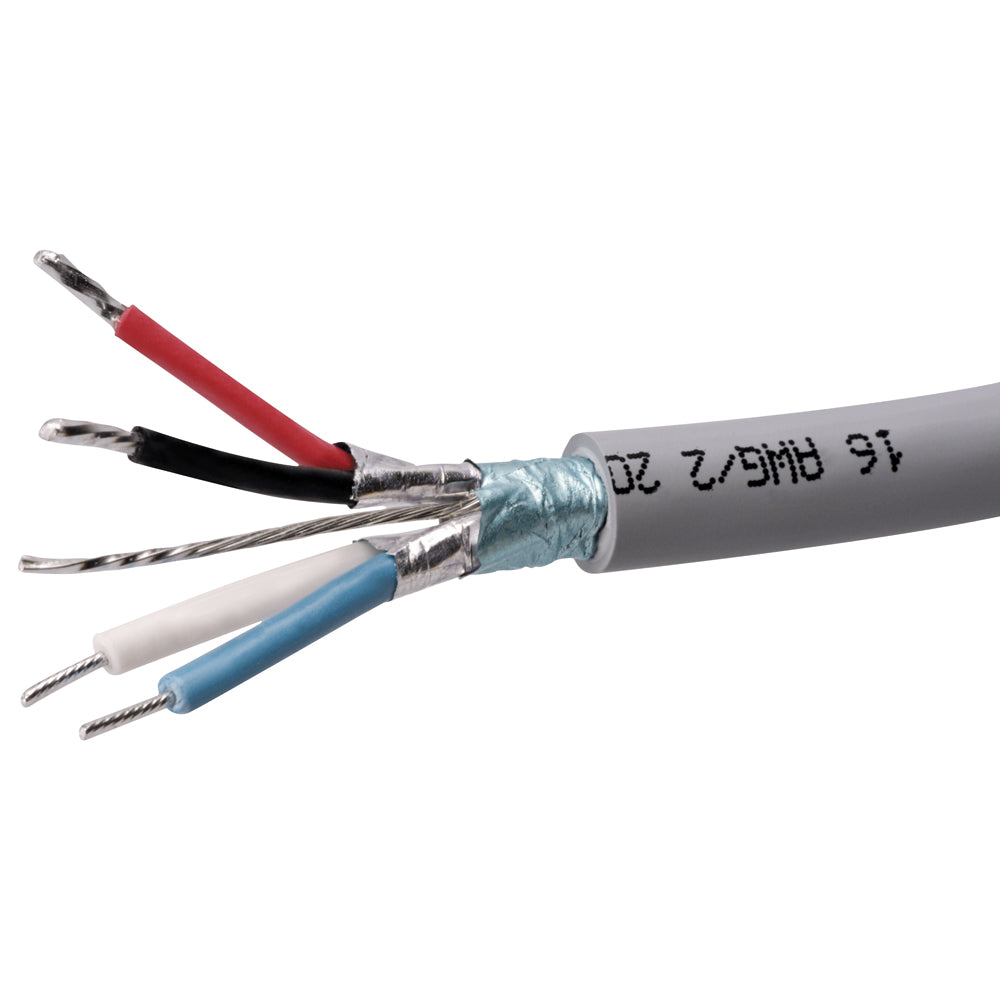

Maretron Mini Bulk Cable - 100 Meter - Gray

Specifications

Overall

  • Outer Jacket Mat/Color:PVC/Blue - NB1, PVC/Gray - NG1
  • Insulation Material: PE (data), PVC (power)
  • Construction: 2x15 (1.45mm) AWG, 2x18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (overall), Foil (power pair), Foil (data pair)

    Power Pair
  • Wire: 2x15 (1.45mm) AWG
  • Resistance/Conductor: 3.44 Ohms/1000 ft max
  • Max Amperage: 16 Amps - NB1, 14 Amps - NG1
  • Color Code: Red/Black

    Data Pair

  • Wire: 2x18 (1.02mm) AWG
  • Characteristic Impedance: 120 Ohms +/- 10%
  • Capacitance: 12 pF/1000 ft Max
  • Color Code: White/Blue

    Approvals
  • UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 APPROVED
  • IEC: IEC-61162-3

    Specifications:

    • Data Interface: NMEA 2000
    • Cable Length (Meters): 100m
    • Box Dimensions: 12"H x 12"W x 12"L WT: 35 lbs
    • UPC: 873804003054
