Lowrance
Lowrance Yamaha Engine Interface Cable [120-37]
Lowrance Yamaha Engine Interface Cable [120-37]
Regular price
$123.00 USD
Regular price
$0.00 USD
Sale price
$123.00 USD
Shipping calculated at checkout.
No reviews
Quantity
Couldn't load pickup availability
To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA
Yamaha Engine Interface Cable

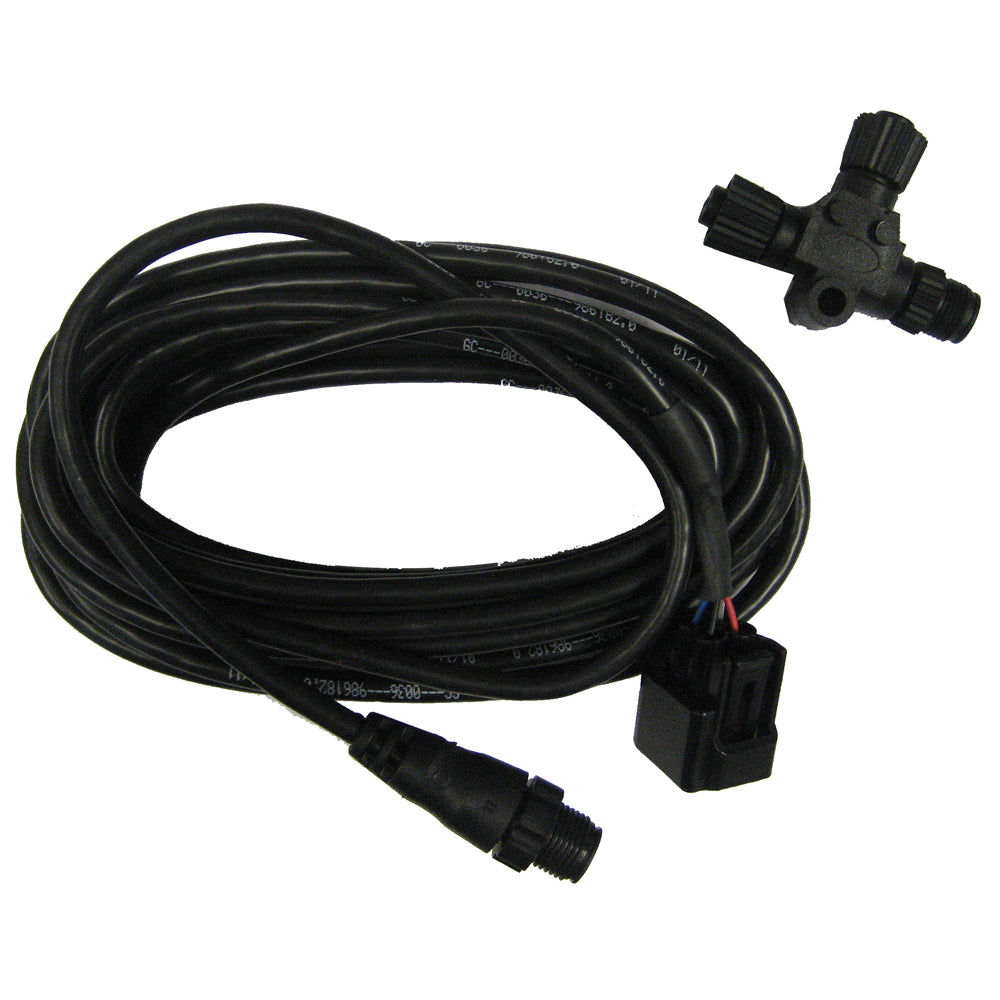

Yamaha engine interface cable 4.5 m (15 ft) and T-connector
Connects to Yamaha engines without Yamaha CommandLink Plus system.
- 2006 & newer: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250.
- 2006 & newer: Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300.
Outputs:
Yamaha 4-Stroke 50-250 | 2-Stroke HDPI 150-350
RPM
Alternator
Voltage
Engine Hours
Engine Temperature
Fuel Pressure
Fuel Rate
Oil Pressure
Trim*
Water Pressure
*Digital trim must be connected by a Yamaha dealer.
*Requires NMEA 2000 network. Kit includes T-connector to connect to a new or existing NMEA 2000 network. Add NMEA 2000 starter kit, part number 000-0124-69, if a network is not already installed.
Works with: NMEA 2000 Compliant Units
Specifications:
- Data Interface: NMEA 2000
- Cable Length (Meters): 4.5m
- Box Dimensions: 2"H x 4"W x 10"L WT: 0.45 lbs
- UPC: 042194529820
