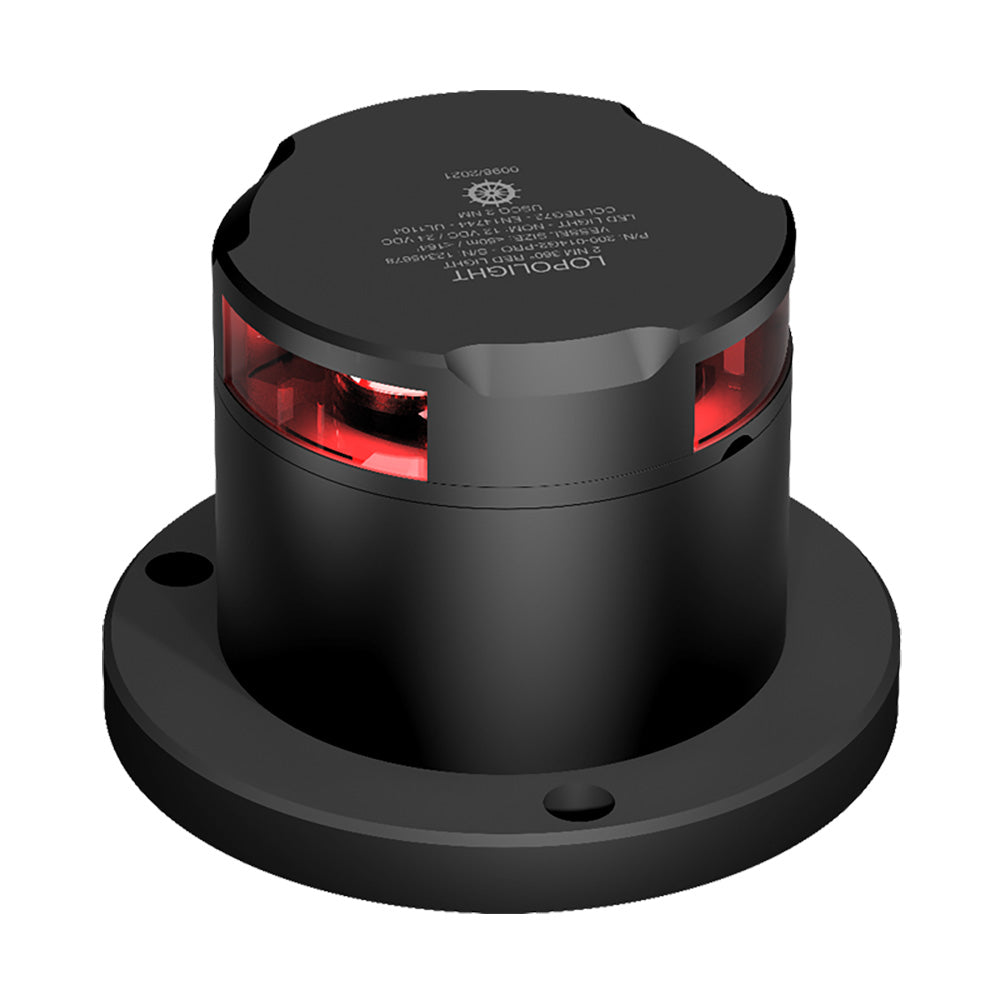

Lopolight 3nm 360 Red Ice-Class Black Anodized Light [300-114G2-PRO-I]

3nm 360° Red Ice-Class Black Anodized Light

Features:

• Built-in De-icing function
• Horizontally mounted on 400-037 alu base (IP68)
• Cable direction side
• Includes HDPE base plate
• Quality cable glands - 3 sizes included:
• 9-17mm (3/8"-11/16") cable diameter
• 7-13mm (1/4"-1/2") cable diameter
• 4.5-10mm (5/32"-3/8") cable diameter

Specifications:

• Certification: This Navigation Light is certified by DNV, the Declaration of Conformity, and the certificates can be found on www.lopolight.com under Support. This Navigation Light conforms to USCG Commandant instructions M16672.2.
• Compliant with relevant sections of: MIL-STD-461G, - MIL-STD-901E, - MIL-STD-167-1A, - MIL-STD-1399/300-1
• Intensity: >15cd
• Dimensions imperial: Ø3.6" x 3.5"
• Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Visibility: 3nm
• Operating temperature: -60°C to 55°C
• Mounting: Horizontal
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Operating Voltage: 20-32VDC
• EAN: 5704438012448
• IP rating: IP68
• Power draw (W): 2,9
• Connection: Plug connector
• Current consumption (mA @ 12VDC): 210
• Current consumption (mA @ 24VDC): 120
• Vessel size: Over 50M
• Min. feed wire gauge: 1.5mm2 AWG18
• Weight (Kg): 1.14 Kg
• Weight (Oz): 40.21 Oz
