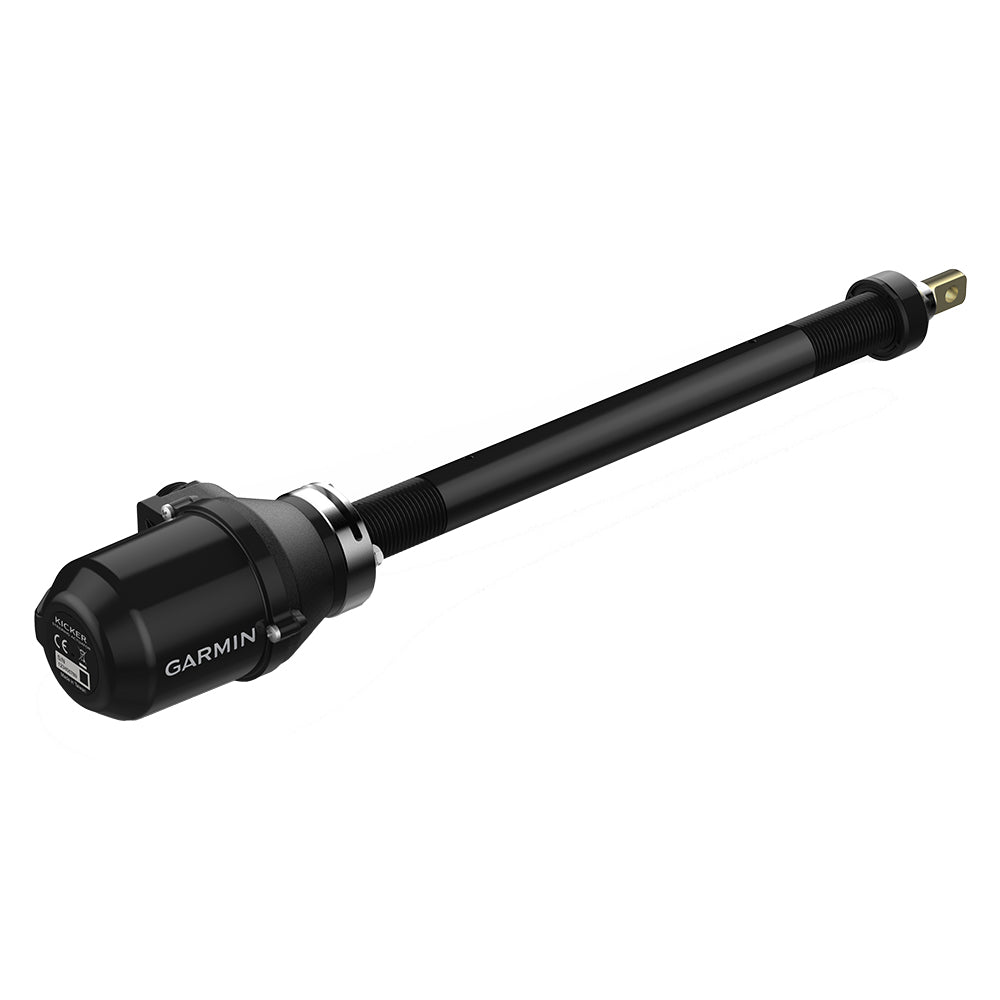

Garmin Steering Actuator [010-12826-00]

Steering Actuator

This mechanical linear actuator mounts through the tilt tube of your kicker motor and is driven by the autopilot system to provide precise steering control.

Features:

• Dimensions: Motor side: Extends 4” (10.3 cm) from end of tilt tube. Motor: 2.5” (6.2 cm) diameter. Overall length: Closed 17.5” (44.5 cm); Extended 25.3” (64.4 cm).
• Operating temperature range: -20° to 70° C
• Water rating: IPX7

Compatible Devices:

• Reactor 40 Kicker Autopilot

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 5"H x 8"W x 21"L WT: 5.2 lbs
• UPC: 753759221737
