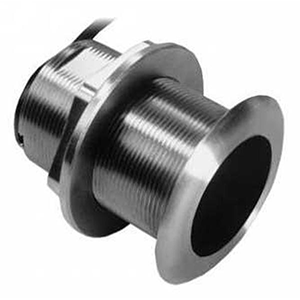

Garmin SS60 20 Tilt Thru-Hull 600W, 50/200kHz Transducer - 8-Pin [010-11868-22]
Garmin SS60 20 Tilt Thru-Hull 600W, 50/200kHz Transducer - 8-Pin [010-11868-22]
Couldn't load pickup availability
To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA
SS60 20° Tilt Thru-Hull 600W, 50/200kHz Transducer - 8-Pin
This stainless steel 600 W 8-pin transducer provides a vertical beam without a fairing and is excellent for fiberglass and wood hulls. It has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45/12 degrees; and a 16 to 24 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
When using with a 6-pin Garmin sounder, a transducer adapter cable is required.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: No
- Cable Length (Feet): 39'
- Temperature: Yes
- Speed Included: No
- Pins: 8
- Box Dimensions: 4"H x 6"W x 8"L WT: 3.4 lbs
- UPC: 753759990756
Owner's Manual (pdf)
Brochure (pdf)
