• Blue Sea 8508 AC Main 6 Positions DC Main 18 Positions 8508
1 1

Blue Sea Systems

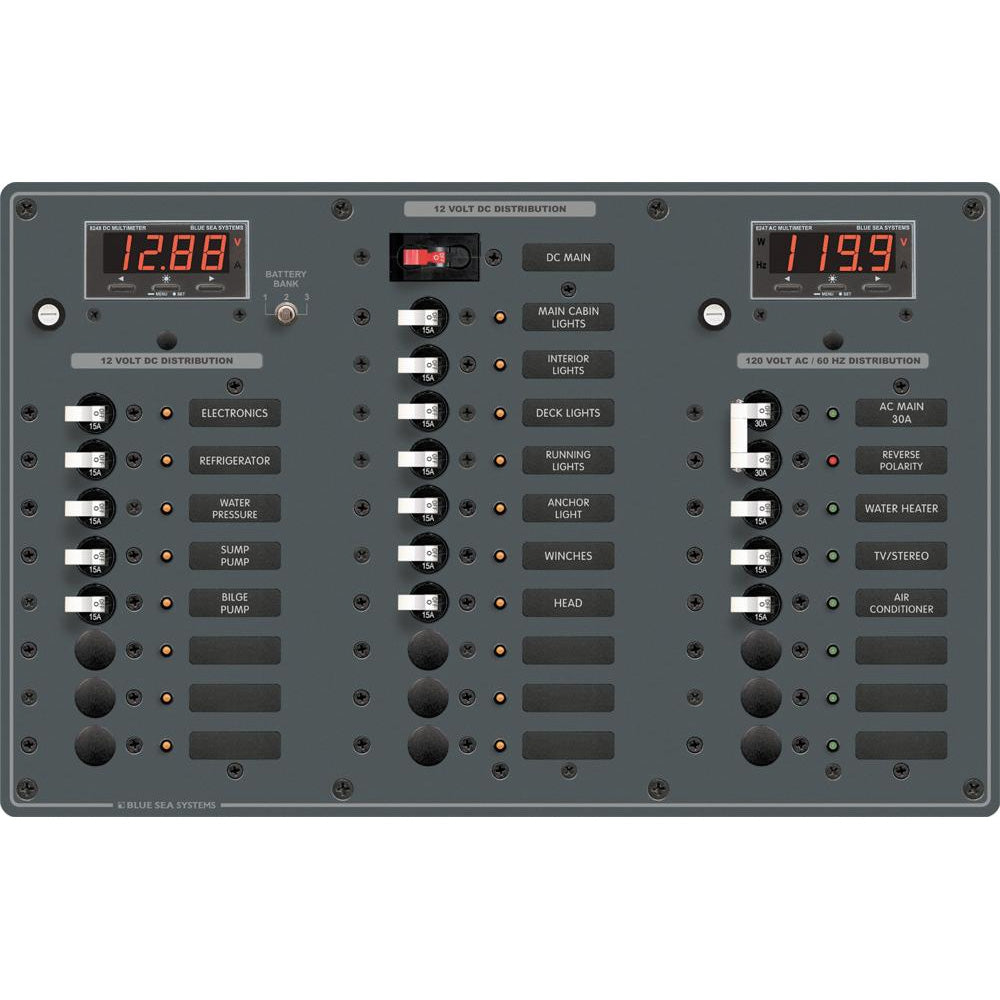

Blue Sea 8508 AC Main + 6 Positions / DC Main + 18 Positions [8508]

Blue Sea 8508 AC Main + 6 Positions / DC Main + 18 Positions [8508]

$1,285.99 USD
$2,207.99 USD $1,285.99 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

AC Main + 6 Positions / DC Main + 18 Positions

Switches Color: White

Installed AC Breakers

  • (1) 16A

  • (3) 8A


    • Installed DC Breakers
  • (1) 100A Main

  • (12) 15A


    • Voltage 230v - 12/24V DC
    • All AC and DC buses installed and fully pre-wired
    • Label backlighting pre-installed
    • ON - indicating LEDs installed in all circuit positions
    • 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
    • Maximum panel amperage - 100 Amperes AC, 50 Amperes DC

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Voltage: 230/12/24v
    • AC/DC: Both
    • Max Breaker Quantity: 6 AC / 18 DC
    • Box Dimensions: 6"H x 14"W x 22"L WT: 10.25 lbs
    • UPC: 632085085087

    Quick Guide (pdf)
    Owner's Manual (pdf)
