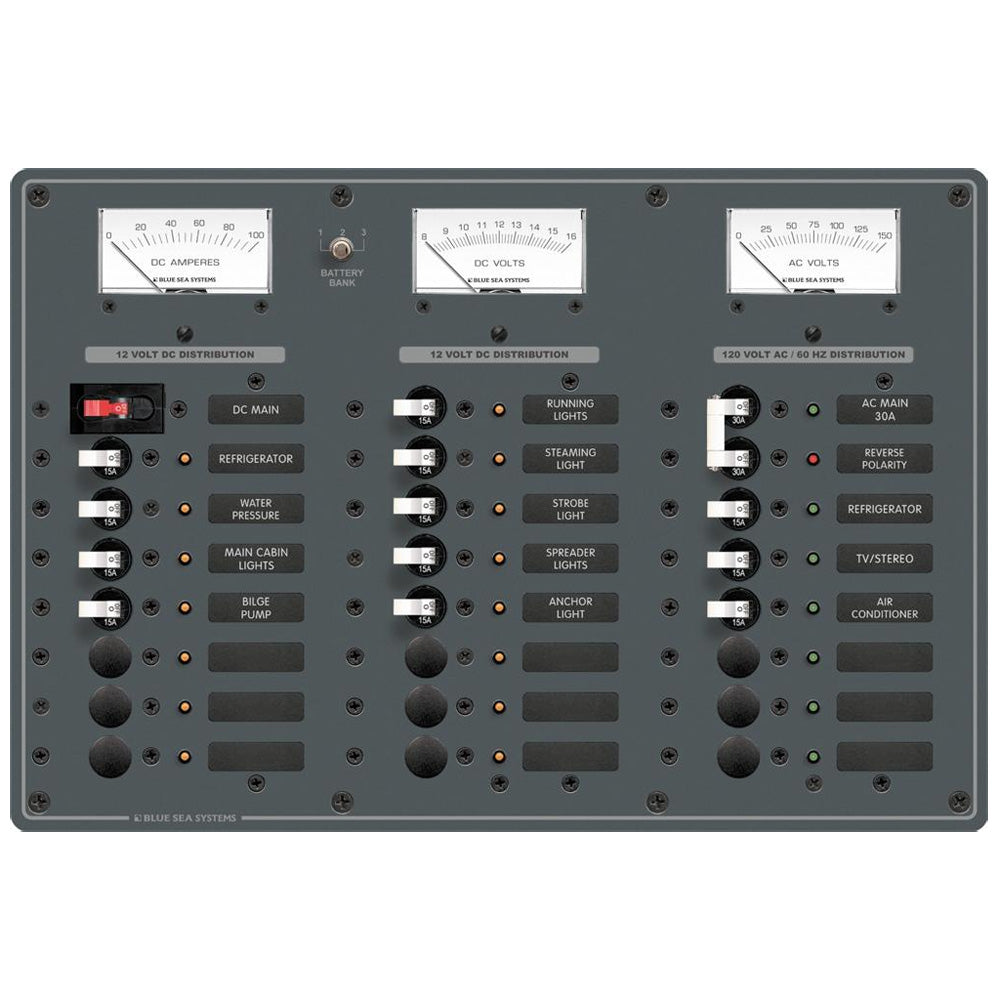

Blue Sea 8184 AC Main + 6 Positions/DC Main +15 Positions [8184]

8184 AC Main + 6 Positions/DC Main +15 Positions

Switches Color: White

Features:

• All AC and DC buses installed and fully pre-wired
• Label backlighting pre-installed
• ON - indicating LEDs installed in all circuit positions
• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

Specifications:

• Positions: 6 AC / 15 DC
• Nominal Voltage: 230v AC / 12v DC
• Height: 10"
• Width: 14.75"
• Depth: 3"

Included:

• (3) 7299 A-Series White Toggle Circuit Breaker - Single Pole 8A (AC Branch)
• (1) 7294 A-Series White Toggle Circuit Breaker - Double Pole 16A (AC Main)
• (1) 9354 AC Voltmeter - 0 to 250v AC (AC Meter)
• (9) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (DC Branch)
• (1) 7250i Circuit Breaker CA1 100A Red IP (DC Main)
• (1) 8017 DC Analog Ammeter - 0 to 100A w/ Shunt (DC Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 6 AC / 15 DC
• AC/DC: Both
• Voltage: 230v/12v
• Box Dimensions: 3"H x 7"W x 15"L WT: 8.9 lbs
• UPC: 632085081843
