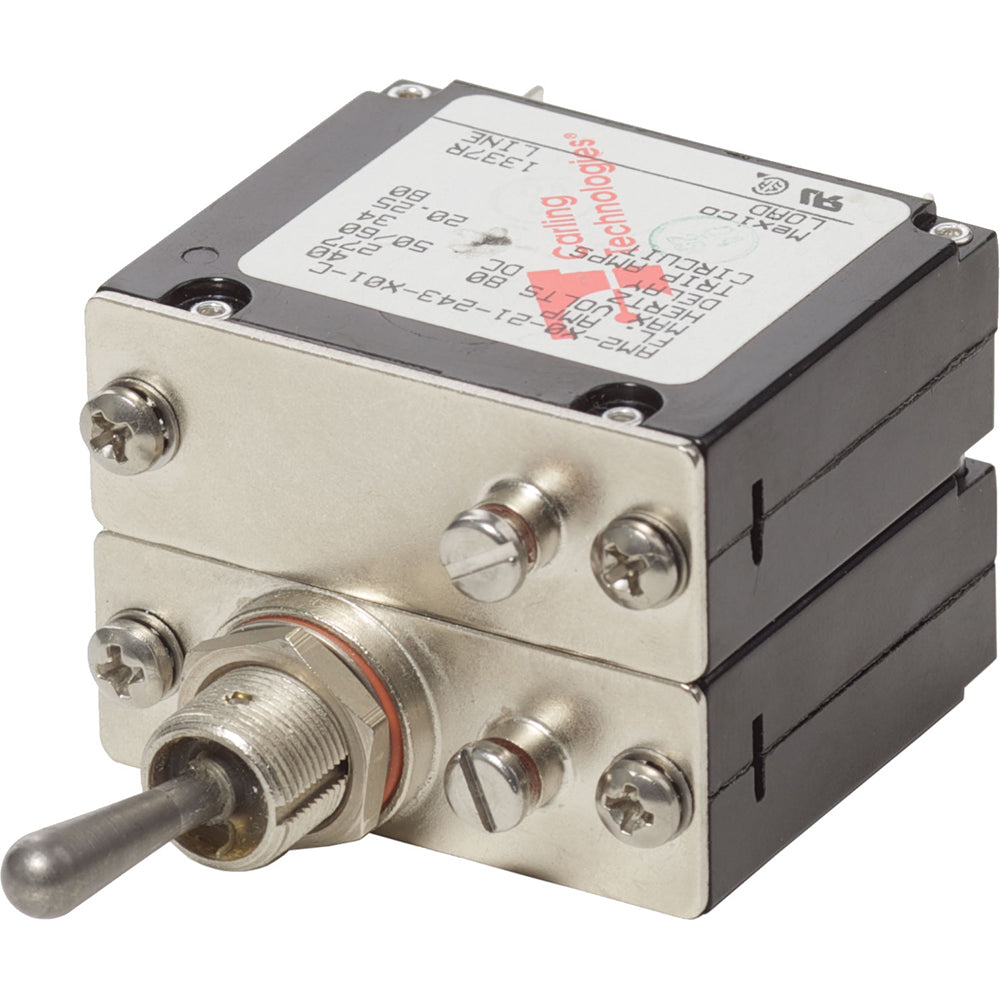

• Blue Sea 7316 COTS Military Grade ASeries 40 Amp 7316
1 1

Blue Sea Systems

Blue Sea 7316 COTS Military Grade A-Series 40 Amp [7316]

Blue Sea 7316 COTS Military Grade A-Series 40 Amp [7316]

$130.99 USD
$160.99 USD $130.99 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

7316 COTS Military Grade A-Series 40 Amp

May be suitable for use when military specifications are required under CFR 46.

Specifications:

  • Amperage: 40A
  • Actuator Style: Metal Toggle
  • Poles: 2
  • Max Voltage: 277V AC, 65V DC
  • Circuit Breaker Type: Magnetic Hydraulic - Trip Free
  • Interrupt Capacity: 1500 A AC, 7500A DC
  • Min Operating Temp: -40°C
  • Max Operating Temp: 85°C
  • Mounting Boss: 1/2-32 Hex Nut SS
  • Mounting Nut Torque: 30"-lb
  • Screw Terminal Torque: 14"-lb
  • Switching Cycles: 6000 Electrical/4000 Mechanical
  • Terminal Screw: #10-32 SS
  • Weight: 0.13lb (0.06 kg)
  • UL 1077

Specifications:

  • Amperage: 40a
  • UPC: 632085073169
