Blue Sea Systems

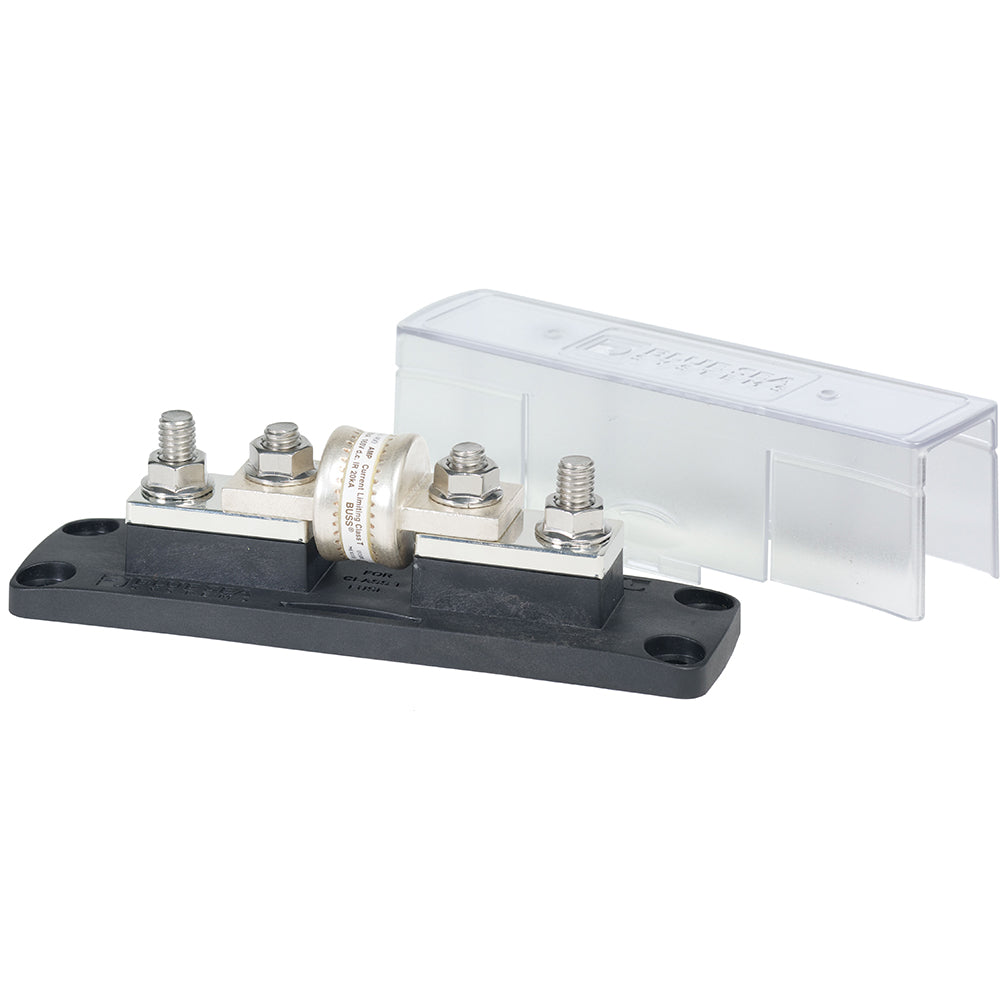

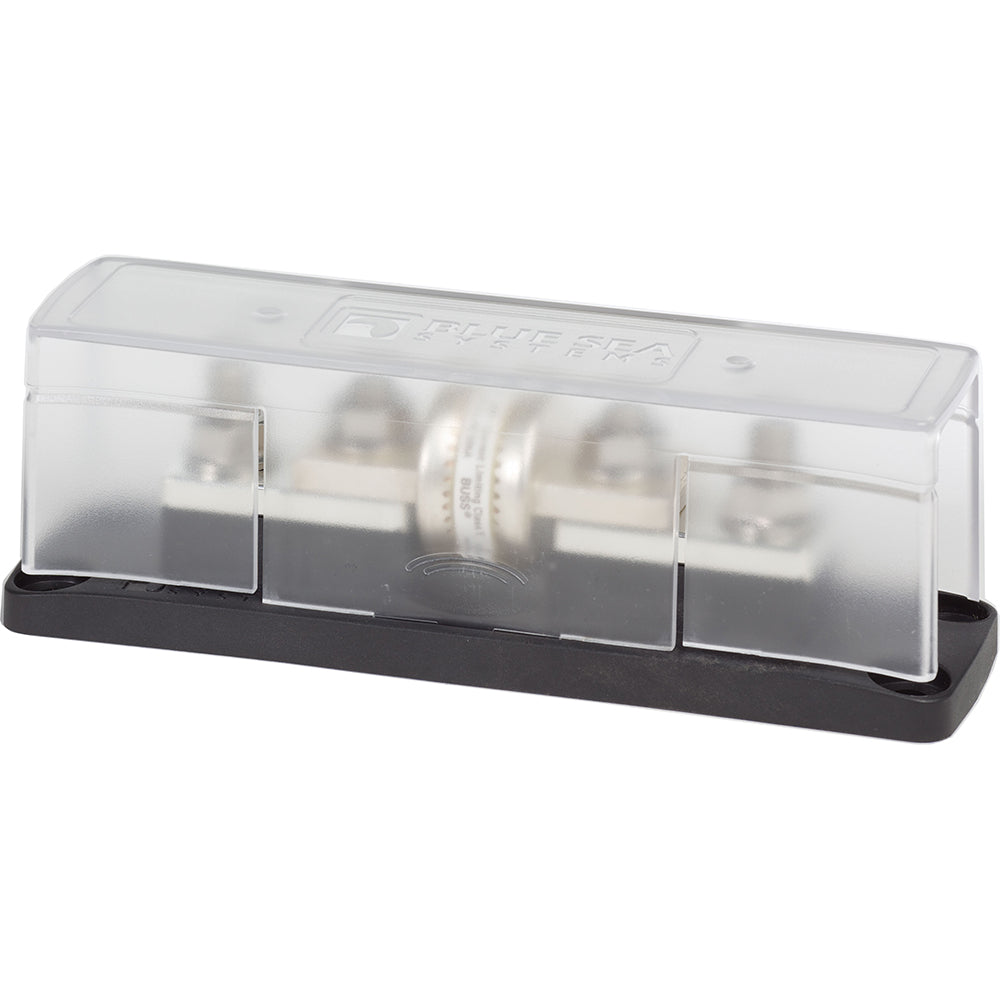

Blue Sea 5502 Fuse Block Class T 225-400 Amp [5502]

Blue Sea 5502 Fuse Block Class T 225-400 Amp [5502]

$63.99 USD
$77.99 USD $63.99 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

Fuse Block Class T 225-400 AMP

Part #: 5502

Features:

  • Maximum Voltage: 160 Volts DC
  • Maximum Amperage: 400 Amperes DC
  • Maximum Torque: 190 in-lb (21.47 Nm) max.
  • Terminal Stud Size: 3/8"-16 (M10)
  • Mounting Holes: Accept 1/4" (M6) Screw
  • Maximum Cable Size 4/0 AWG
  • Fuse Mounting Blocks: Tin-Plated Copper
  • Class T Fuses Available: 110-400 Amperes DC

Fuse Sold Sepereatly

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Fuse Type: Class T
  • Type: Fuse Blocks
  • Box Dimensions: 3"H x 8"W x 9"L WT: 1.1 lbs
  • UPC: 632085055028
