Blue Sea 5194 MRBF Surface Mount 3 Circuit Fuse Block - Independent Source [5194]

Blue Sea 5194 MRBF Surface Mount 3 Circuit Fuse Block - Independent Source [5194]

$72.99 USD
$89.99 USD $72.99 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

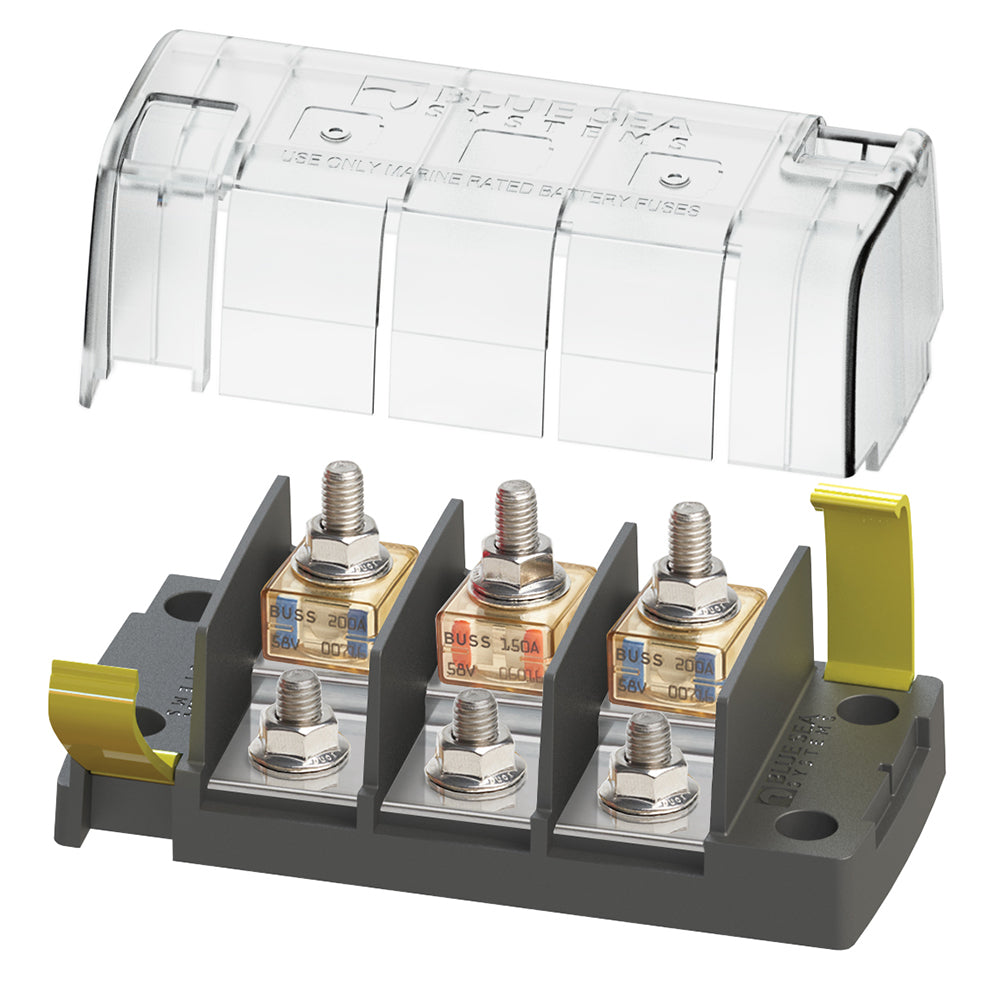

Surface Mount 3 Circuit Fuse Block - Independent Source

  • Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection
  • The independent source fuse block (5194) is ideal for 3 output battery chargers
  • The common source fuse block (5196) provides 3 loads from a single source
  • Clip-on cover insulates terminal connections
  • Versatile wiring options allow all wires to come out a single side
  • Label recesses for easy circuit identification
  • One-piece stainless flange nuts ensure safe and secure connections

Specifications

  • Ignition Protected: Yes
  • Maximum Amperage: 240 per circuit
  • Maximum Voltage: 58v DC
  • Maximum Torque: 100 in-lb
  • Terminal Stud Size: M8 (5/16"-18)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Fuse Type: Terminal
  • Type: Fuse Blocks
  • Box Dimensions: 4"H x 7"W x 11"L WT: 1.4 lbs
  • UPC: 632085051945
