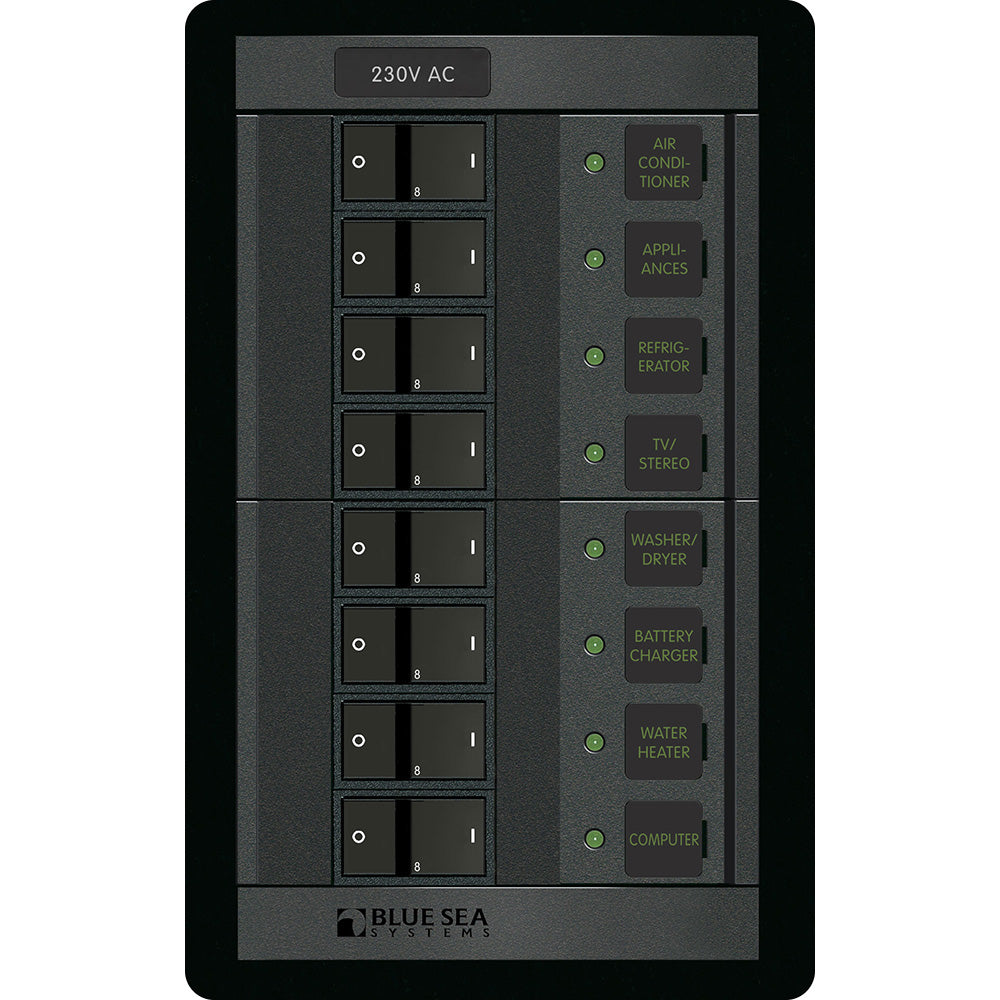

Blue Sea 230 Volt AC 8 Position 360 Panel [1229]

Blue Sea 230 Volt AC 8 Position 360 Panel [1229]

$505.99 USD
$768.99 USD $505.99 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

230 Volt AC 8 Position 360 Panel

This 360 Panel System consists of modules. Each module contains a meter, a battery switch, and 8 circuit-labeled positions.

Features:

  • All circuit label positions are backlit
  • “ON” indicating LEDs installed in all circuit positions
  • Includes 4206—Square Format Label Set

Specifications:

  • Positions: 8
  • Nominal Voltage: 230V AC
  • Maximum Amperage: 100A
  • Height: 7.75 in. / (196.85 mm)
  • Width: 4.88 in. / (123.95 mm)
  • Depth: 3.00 in. / (76.2 mm)
  • Weight: 2.72 lb. / (1.23 kg)

Specifications:

  • AC/DC: AC
  • Max Breaker Quantity: Eight
  • Voltage: 230
  • Waterproof: No
  • Box Dimensions: 5"H x 7"W x 12"L WT: 2.4 lbs
  • UPC: 632085012298

Quick Guide (pdf)
Owner's Manual (pdf)
