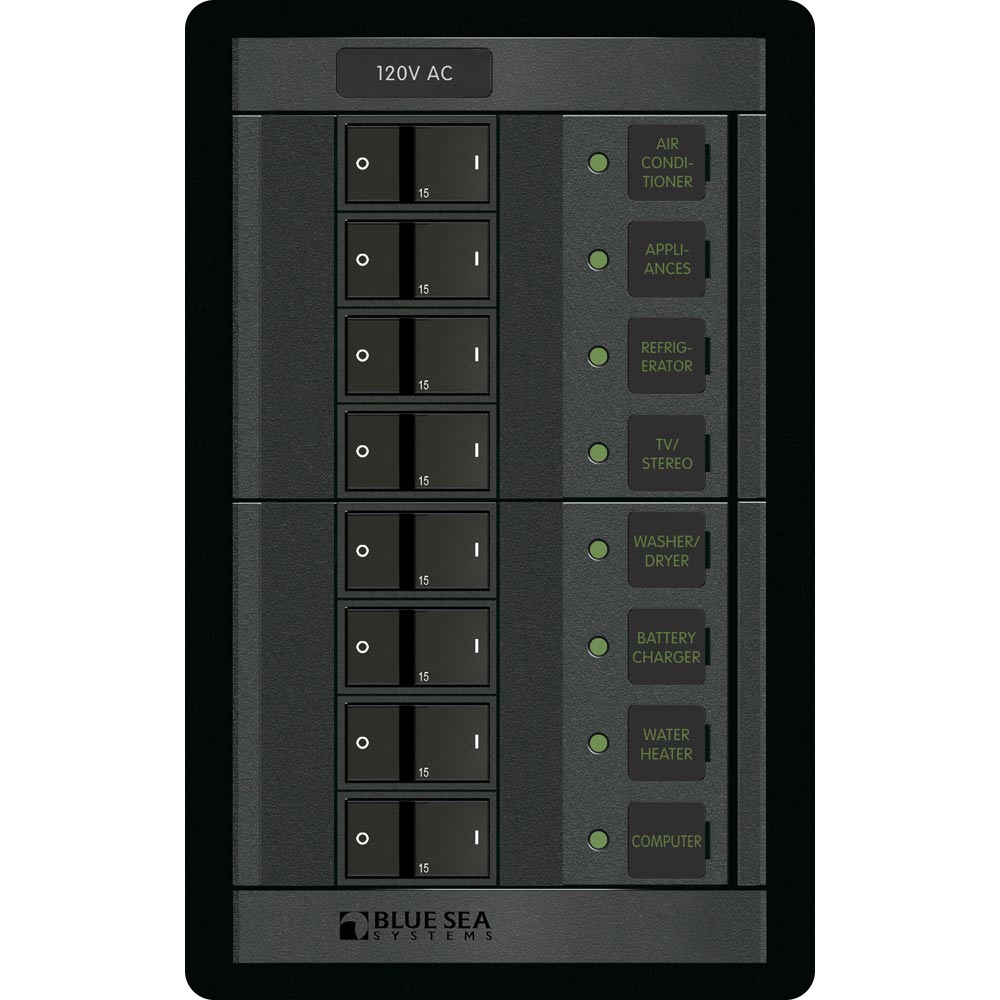

• Blue Sea 1228 120V AC 8 Position 1228
1 1

Blue Sea Systems

Blue Sea 1228 120V AC 8 Position [1228]

Blue Sea 1228 120V AC 8 Position [1228]

$404.99 USD
$614.99 USD $404.99 USD
Sale Sold Out
Shipping calculated at checkout.

To ensure the fastest delivery, orders are fulfilled and shipped directly from our specialized partner warehouses across the USA

120 Volt AC 8 Position

Features:

  • All circuit label positions are backlit
  • "ON" indicating LEDs installed in all circuit positions
  • Includes 4206-Square Format Label Set


Specifications:
  • Positions: 8
  • Nominal Voltage: 120V AC
  • Maximum Amperage*: 100A
  • Height: 7.75" (196.85mm)
  • Width: 4.88" (123.95mm)
  • Depth: 3.00" (76.2mm)
  • Weight: 2.68lb (1.22kg)


* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Box Dimensions: 5"H x 7"W x 12"L WT: 2.6 lbs
  • UPC: 632085012281

Quick Guide (pdf)
Owner's Manual (pdf)
View full details
