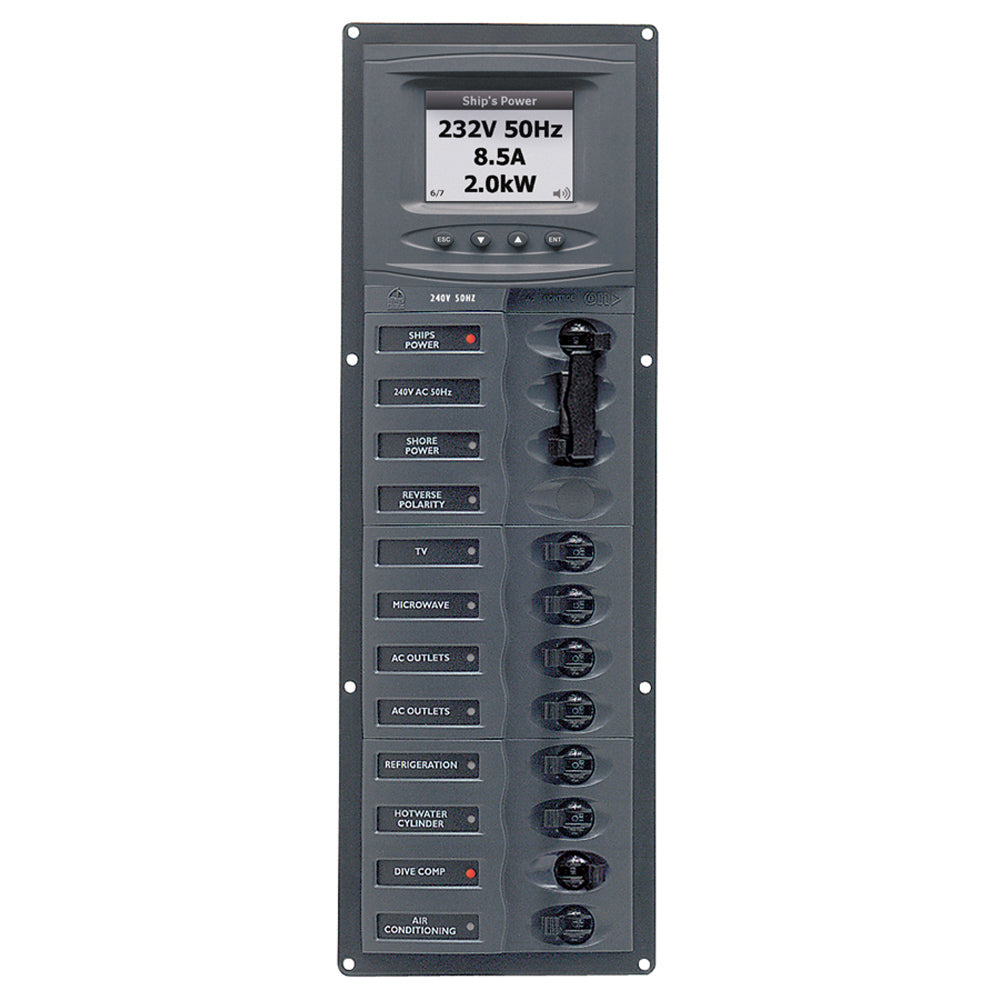

BEP AC Circuit Breaker Panel w/Digital Meters, 8SP 2DP AC230V ACSM Stainless Steel Vertical [900-AC2V-ACSM]

AC Circuit Breaker Panel with Digital Meters, 8SP 2DP AC230V ACSM Stainless Steel Vertical

Features

• Supplied with tranducer

• Reverse polarity indicator

• Double pole mains input CBs with side lockout

• Digital meter shows volts, amps and frequency

• LED wired to indicate live panel with mains breaker either on or off

• AC source selector ensures no cross over between AC inputs (ship or
  shore power)

• Total Positions: 8 Loads + 2 Inputs

• Circuit Breakers: 1x 5A, 3x 10A, 3x 15A, 1x 20A + 1x 20A, 1x 30A

• Nominal Voltage: 230V AC

• Maximum Amperage: 30A

• Dimensions: 15" X 5" X 2.5"

• Neg Bus: IS-6MM-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Max Breaker Quantity: 8+2
• UPC: 843687004271
