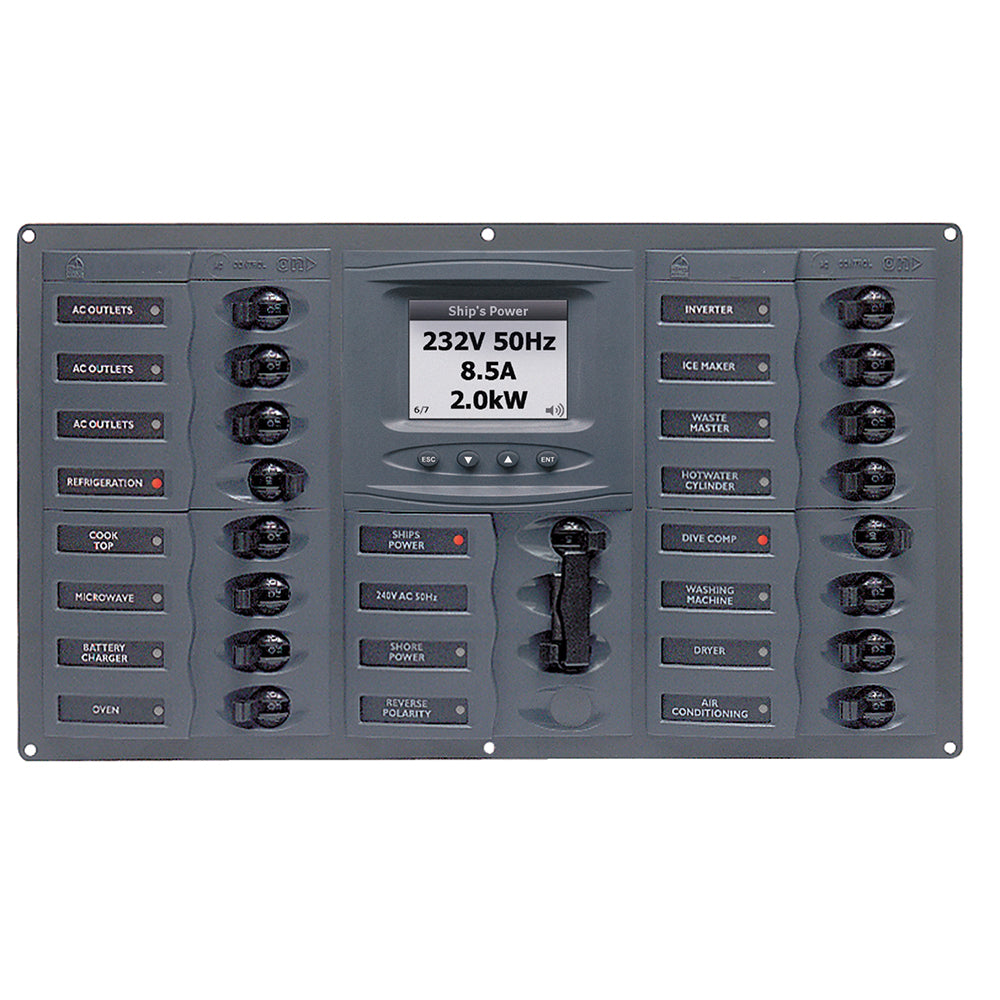

BEP AC Circuit Breaker Panel w/Digital Meters, 16SP 2DP AC230V ACSM Stainless Steel Horizontal [900-AC4-ACSM]

• Supplied with transducer
• Reverse polarity indicator
• Double pole mains input CBs with side lockout
• Digital meter shows volts, amps and frequency
• LED wired to indicate live panel with mains breaker either on or off
• AC source selector ensures no cross over between AC inputs (ship or
• shore power)

• Total Positions: 16 Loads + 2 Inputs
• Circuit Breakers: 1x 5A, 5x 10A, 7x 15A, 2x 20A, 1x 25A + 1x 20A, 1x 50A
• Nominal Voltage: 230V AC
• Maximum Amperage: 50A
• Dimensions: 7.9" X 13.9" X 2.5"
• Neg Bus: IS-6MM-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Max Breaker Quantity: 16+2
• Box Dimensions: 5"H x 11"W x 16"L WT: 7.35 lbs
